SKU:90UN058-2
1.5 inch Digital Turbine Diesel Water Fuel Flow Meter Oval Gear Gauge
1.5 inch Digital Turbine Diesel Water Fuel Flow Meter Oval Gear Gauge
Couldn't load pickup availability
Description
Wide range of applications: suitable for detecting diesel, fuel, kerosene, methanol, water, etc.

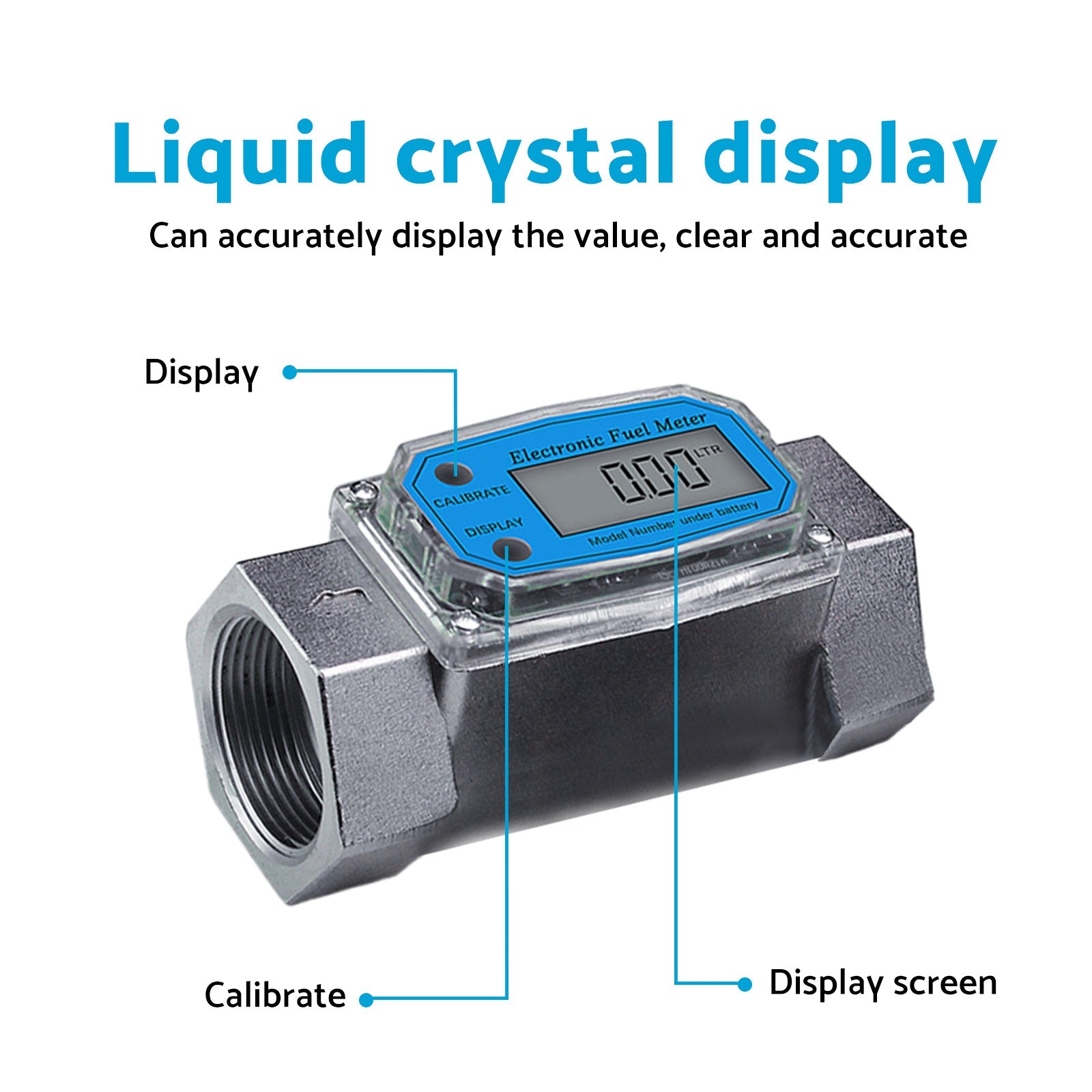

Liquid crystal display: zero adjustment function, cumulative flow reading, convenient operation, reading and adjustment.
PCB circuit board: stable circuit, long life, high efficiency (without battery).
High-quality materials: stainless steel and aluminum alloy materials.
Modular design: Modular design, suitable for use with output modules.
Specification
Type: Digital Turbine Flow Meter
Battery type: 2 x AAA LRO3 batteries (not included)
Thread size: 1inch NPT / 1.5inch NPT / 2inch NPT
Connection mode: Thread

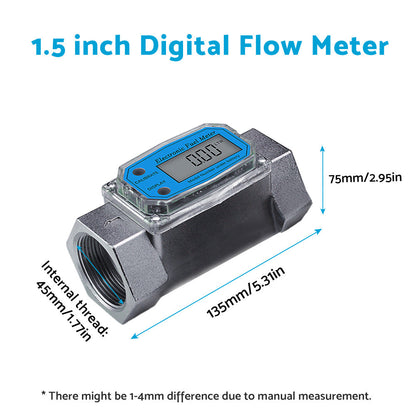

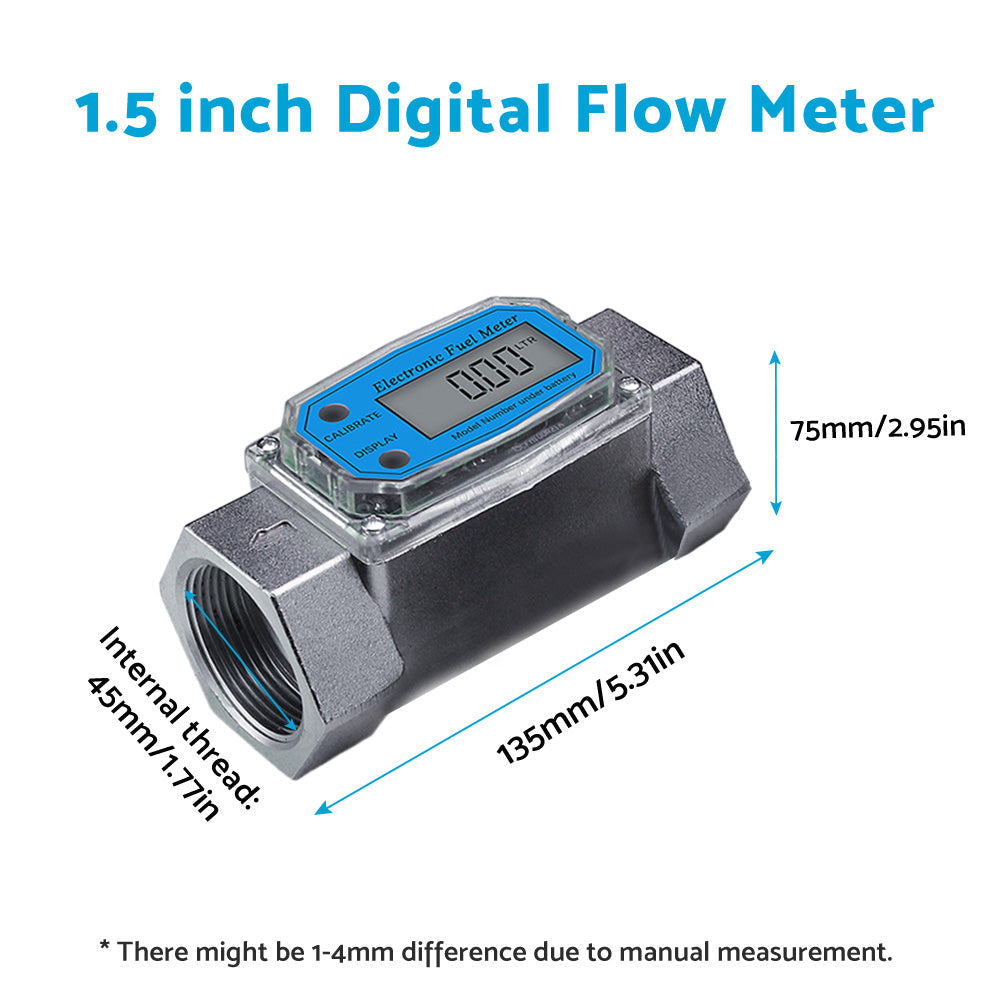

Internal thread: 45 mm
Minimum flow range: 40L/min
Maximum flow range: 280L/min
Measure accuracy: ±1%
Maximum working pressure: 6 Bar
Single counting range: 9999.9
Accumulative counting range: 999999
Working temperature: -10°C ~ +60°C (14°F~140°F)
Application: Diesel, kerosene, gasoline
Package Including
1 x 1.5 inch Digital Turbine Flow Meter
