2.4G DMX512 Wireless Transmitter & Receiver Suitable For Stage Lighting Effects DMX Controllers

Features:
Real-time data transmission without any time delay.
Ability to set 7 different ID codes.
Portable and easy to handle.
Cost-effective.
One transmitter can

Technical Parameters:
Tricolor LED display.
Automatic frequency hopping across 126 channels for high anti-jamming capability and reliable operation.
Settable ID codes with 7 groups, allowing multiple wireless systems to work simultaneously without interference.

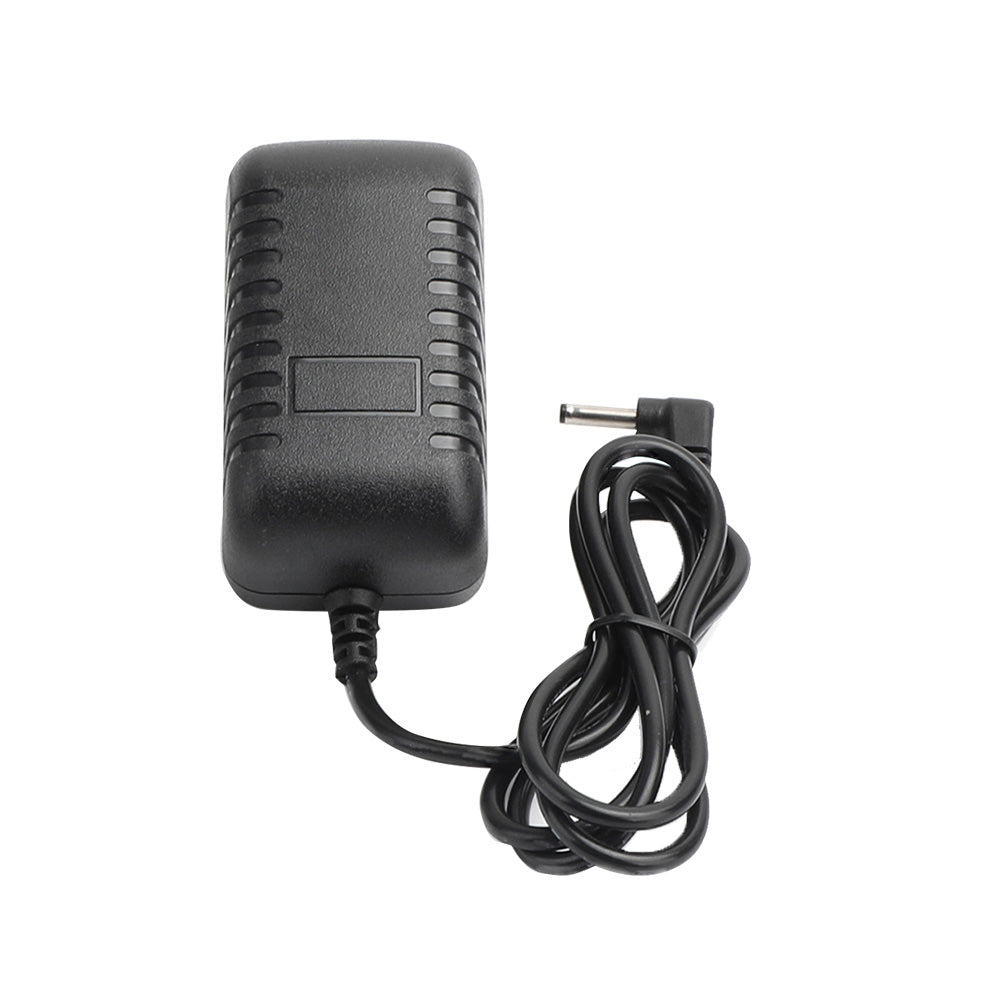

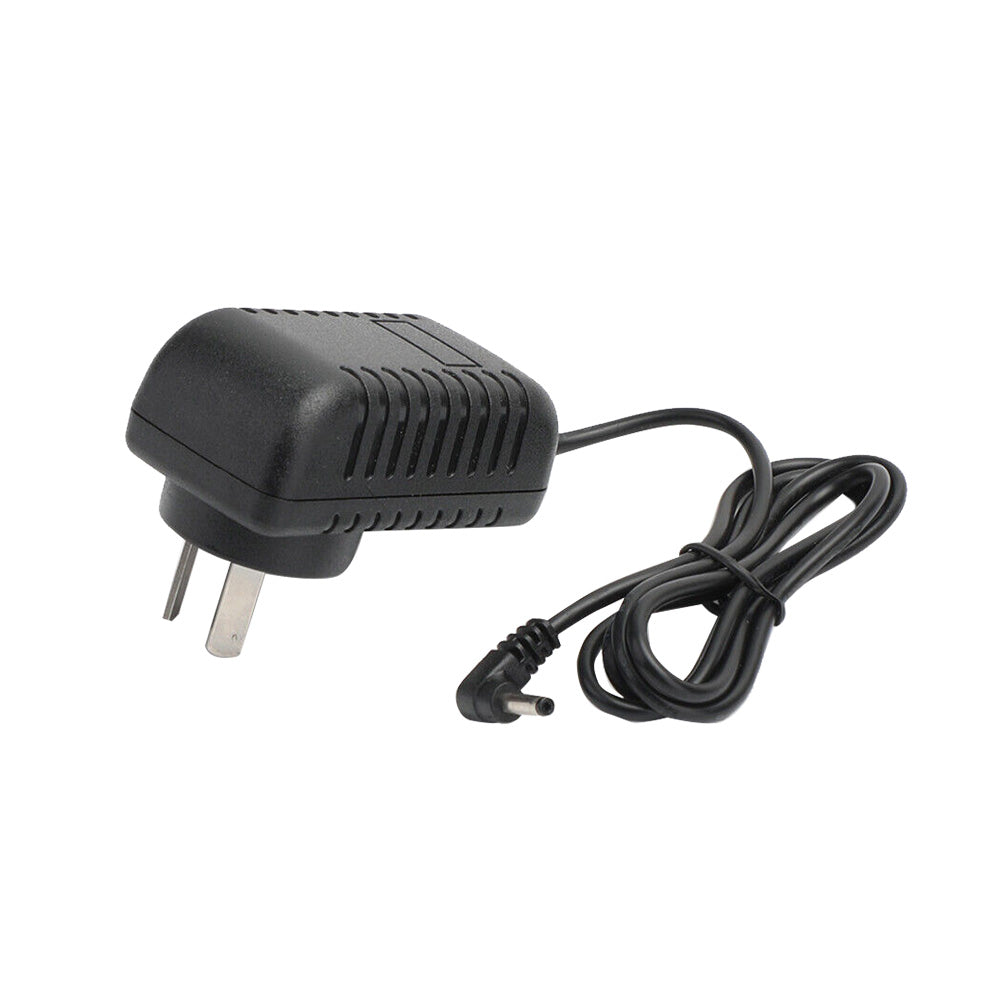

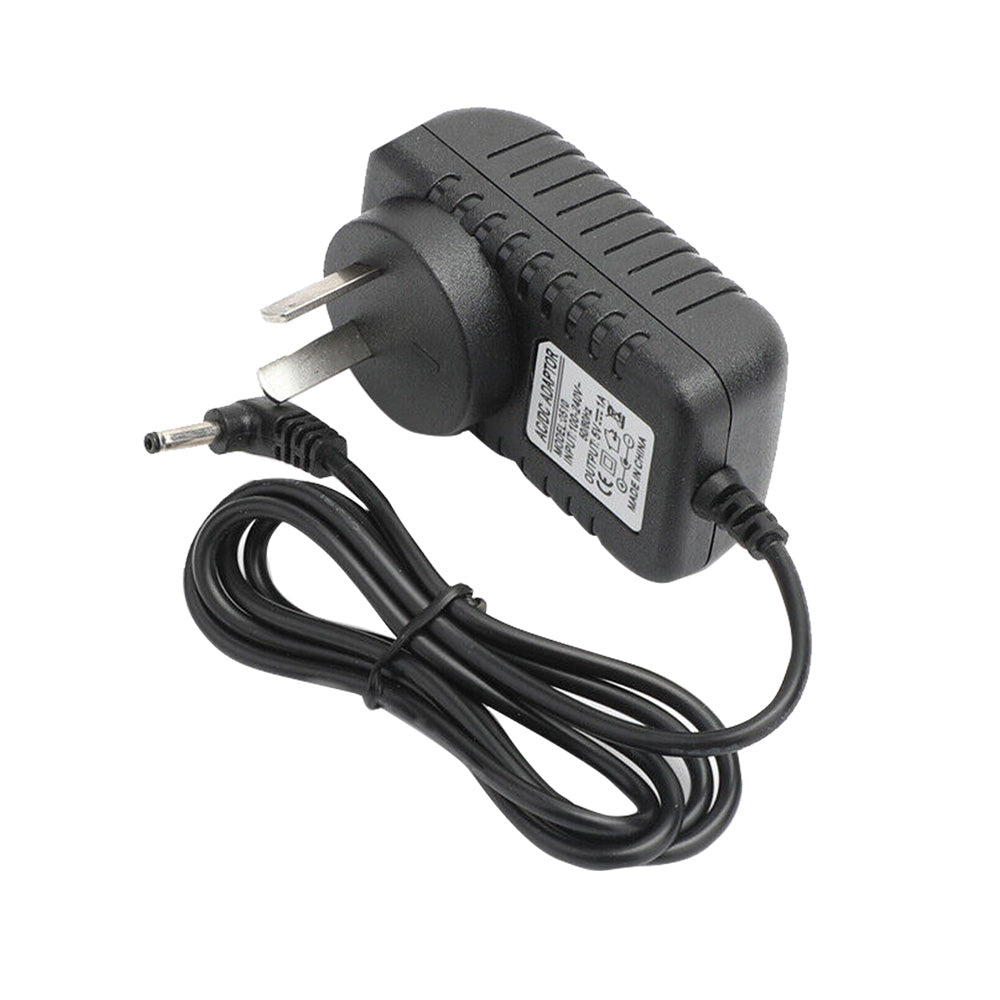

Input voltage: 5VDC 500mA minimum.
Communication distance: 500 meters.
Operating frequency range: 2.4GHz ISM band with 126 channels.
Maximum transmitting power rate: 23dBm.
Receiver sensitivity: -94dBm.

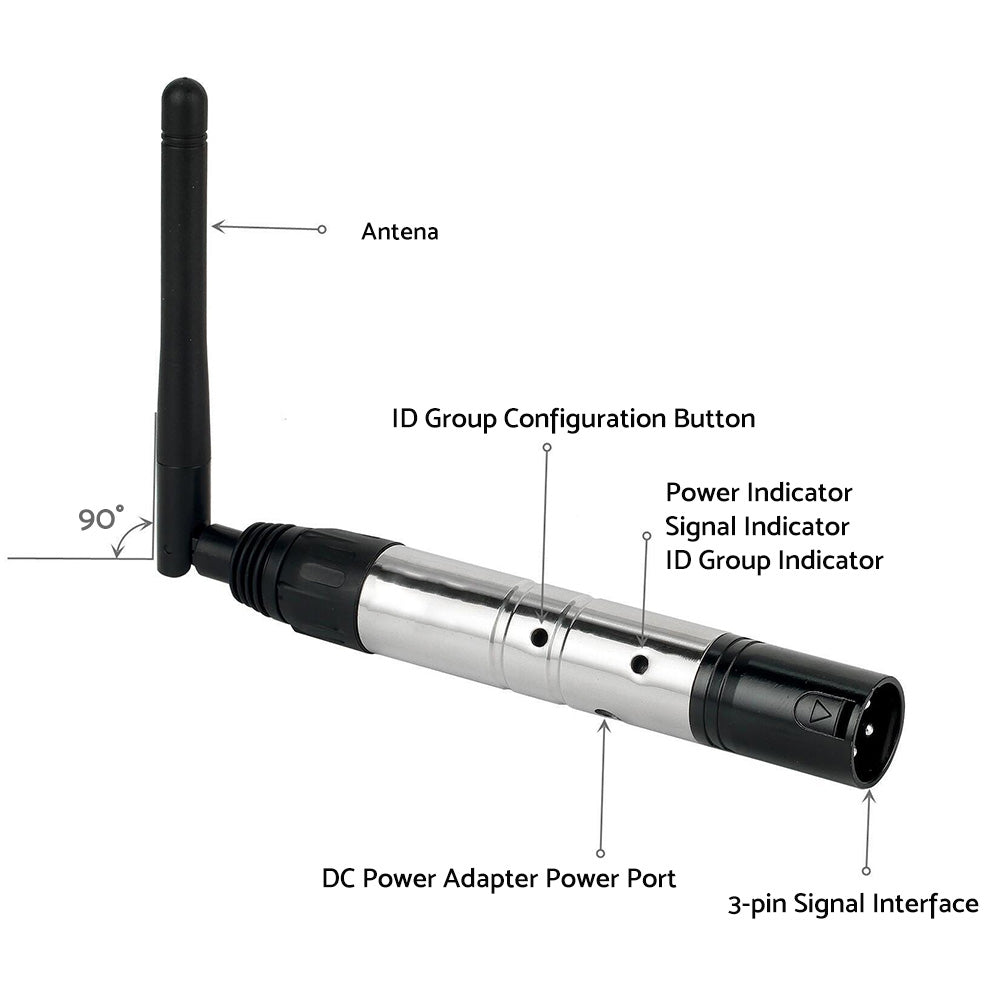

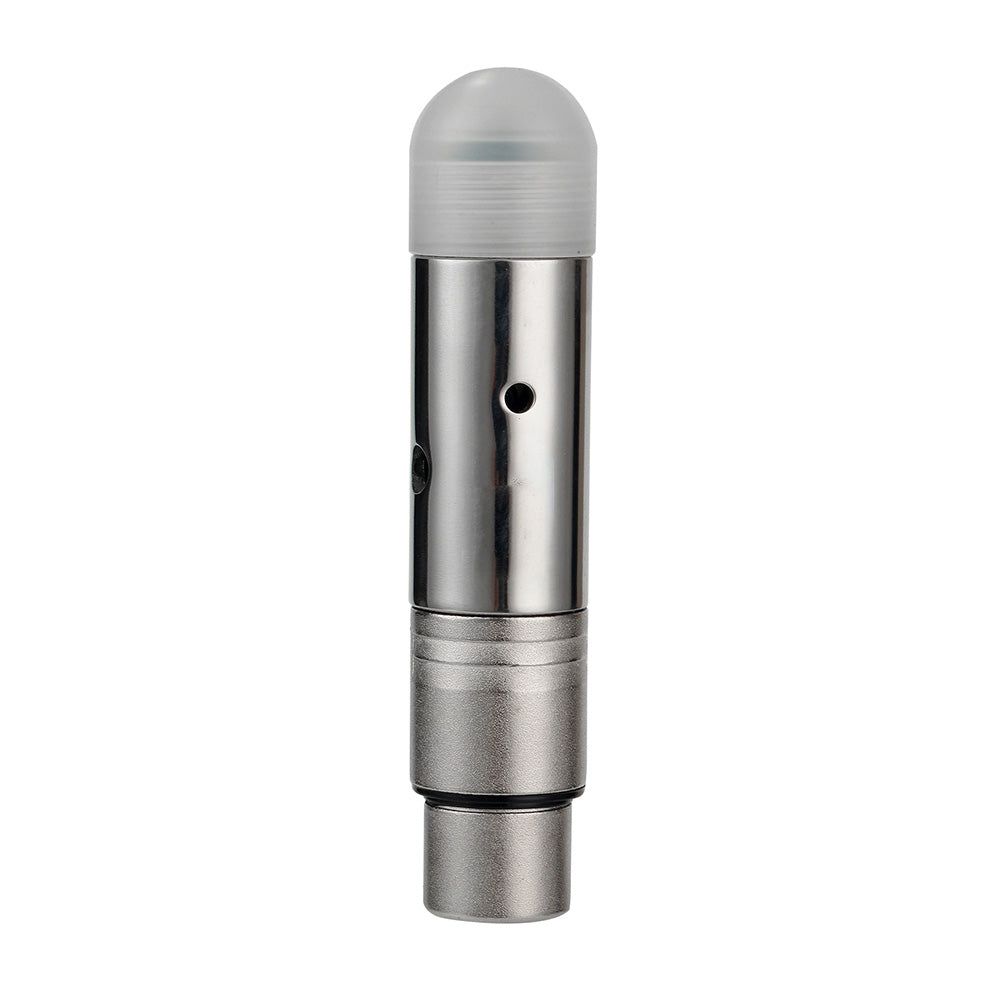

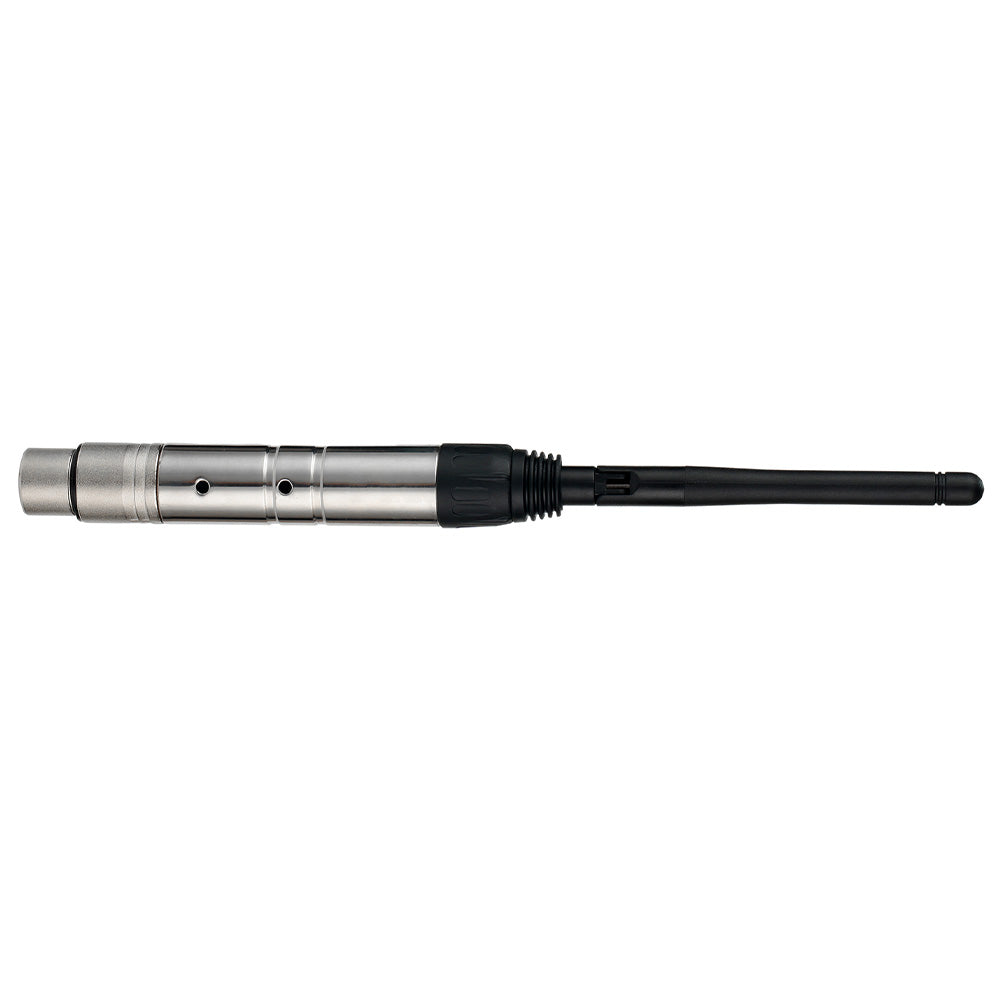

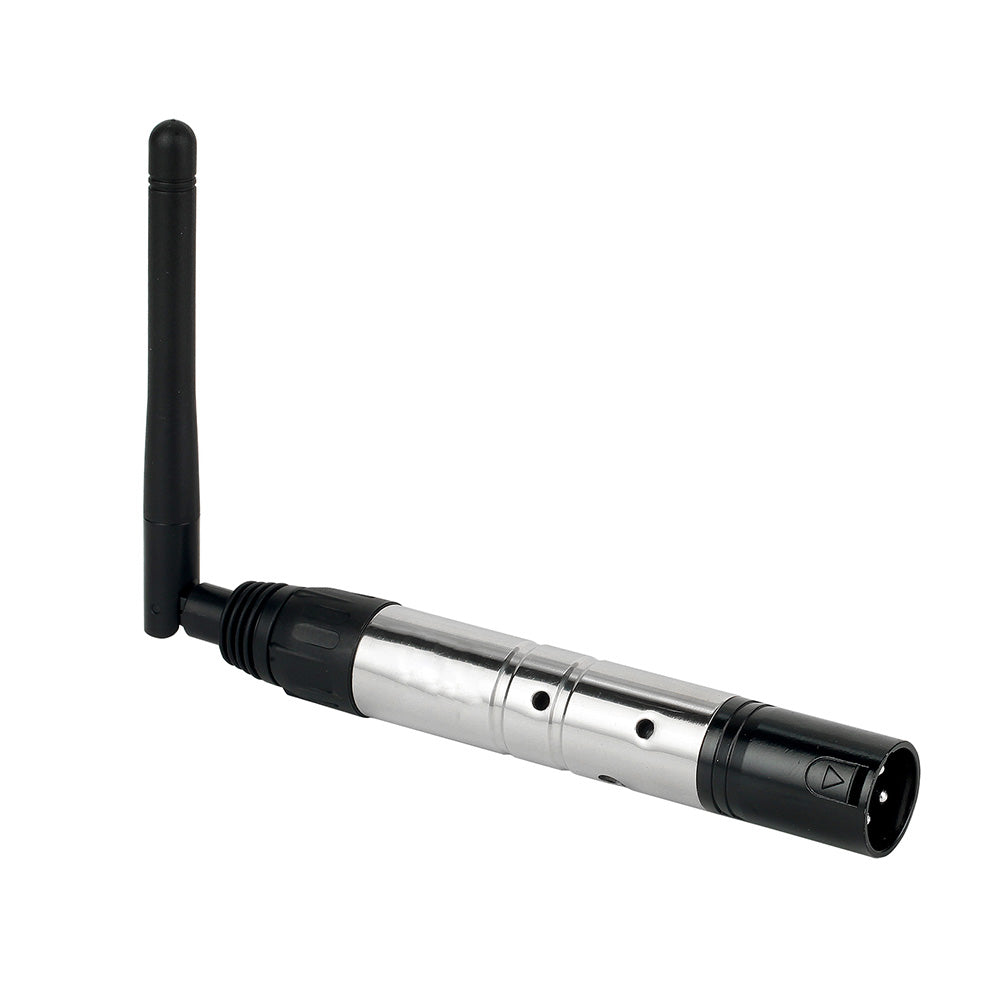

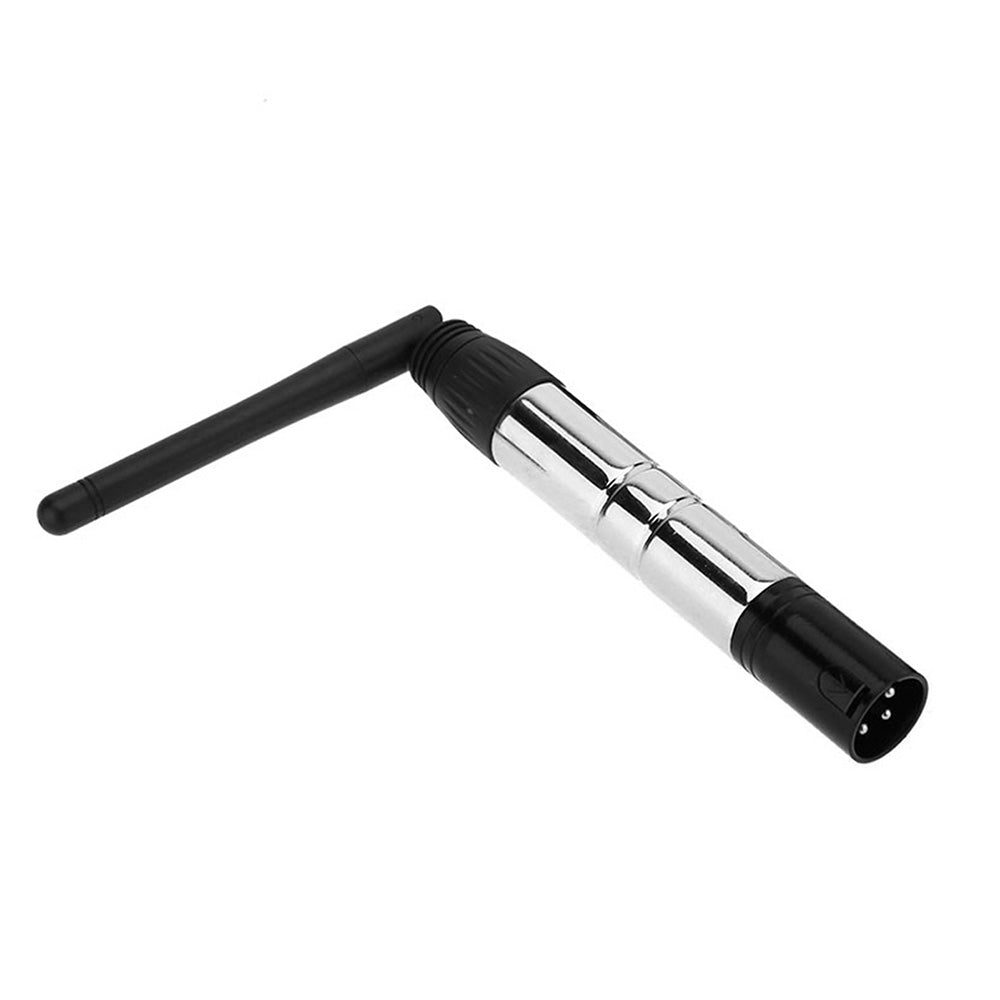

Signal ports: 3-pin male plug (for transmitter) and female plug (for receiver).

Operating Manual:
ID code and corresponding LED colors:
1: RED
2: GREEN
3: YELLOW (RED + GREEN)
4: BLUE
5: PURPLE (RED + BLUE)
6: CYAN (GREEN + BLUE)
7: WHITE (RED + GREEN + BLUE)

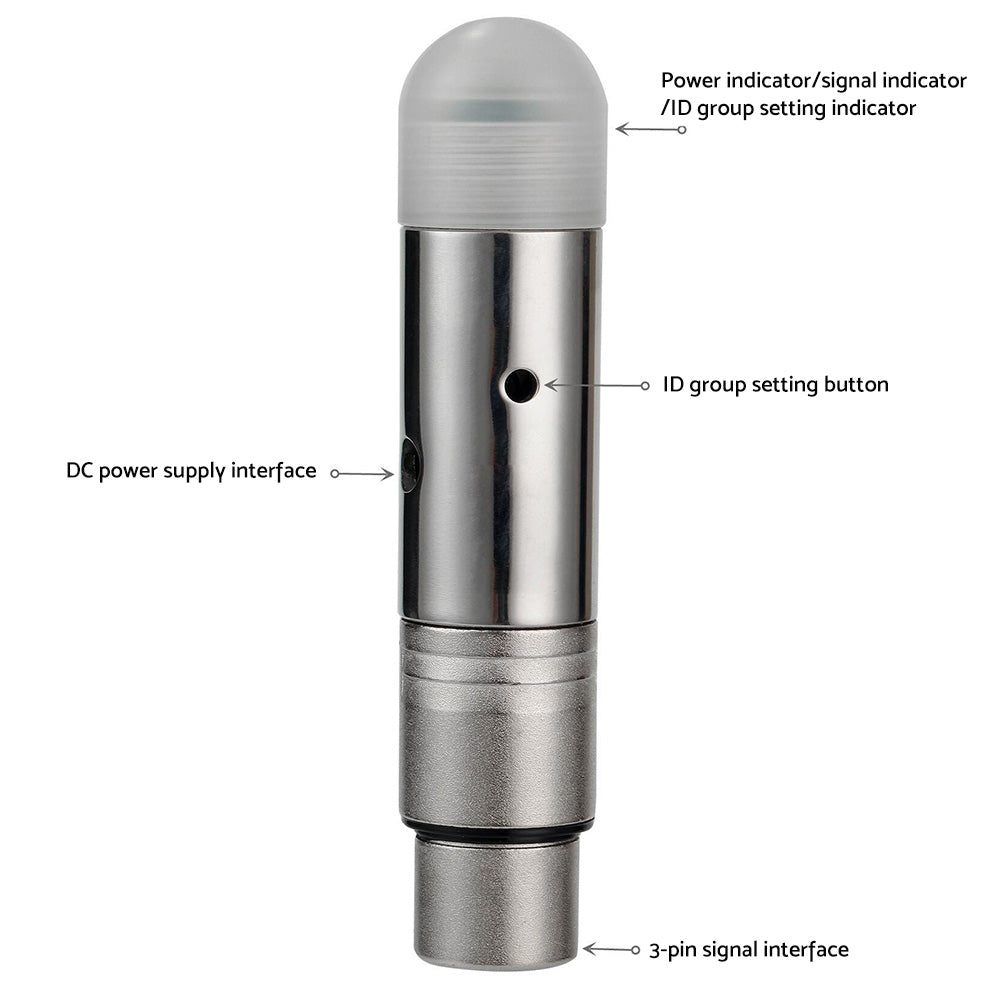

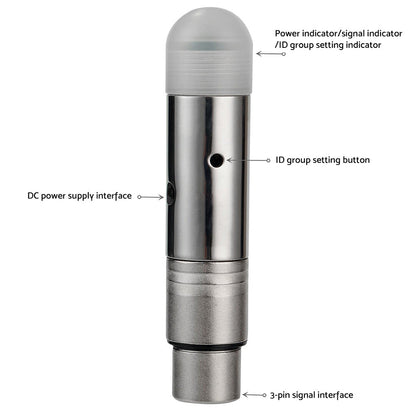

Press the key once to enter ID setting mode, press again to set the ID value, and continue pressing to increment the ID value.

Working Conditions:
Constantly lit LED: No DMX or wireless signal detected.
Flashing red LED: Transmitter is transmitting.
Flashing green LED: Receiver is receiving.
RF frequency range: 2.400-2.525GHz, total of 126 channels, automatically searching.
ID Codes: 17 groups of ID codes, set using the "Key" button. Transmitter and receiver must have the same ID code to function together.

Establishing Communication:
Power on the DMX512 wireless receiver and transmitter.
Press the "Key" button to set the same ID value on the transmitter and receiver. Use different ID values for multiple wireless systems in the same location.
The red LED flashes when the transmitter transmits DMX data on an interference-free frequency section, and the receiver changes its communication frequency section. The green LED flashes until the correct ID value is received. The LED flashes faster as the DMX data transmission speed increases.

Specification:
Type: DMX Controller
Connectivity: Wireless

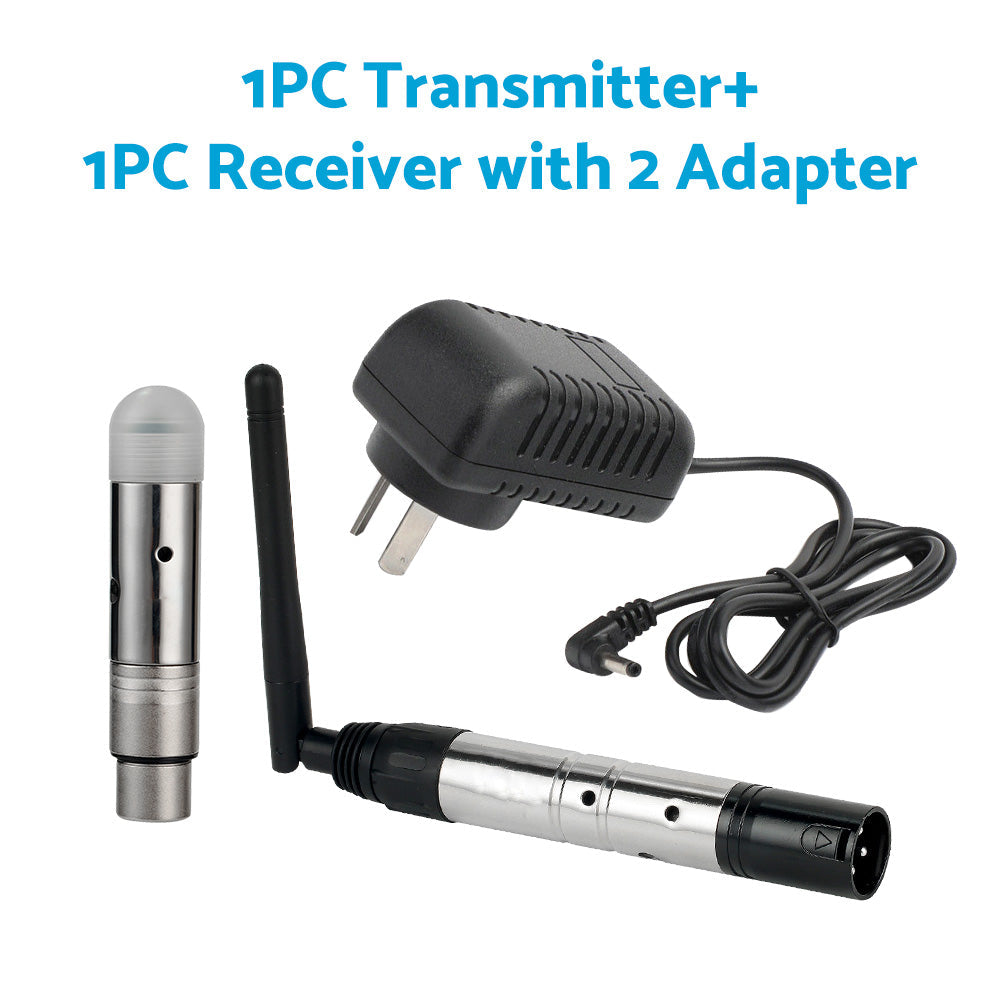

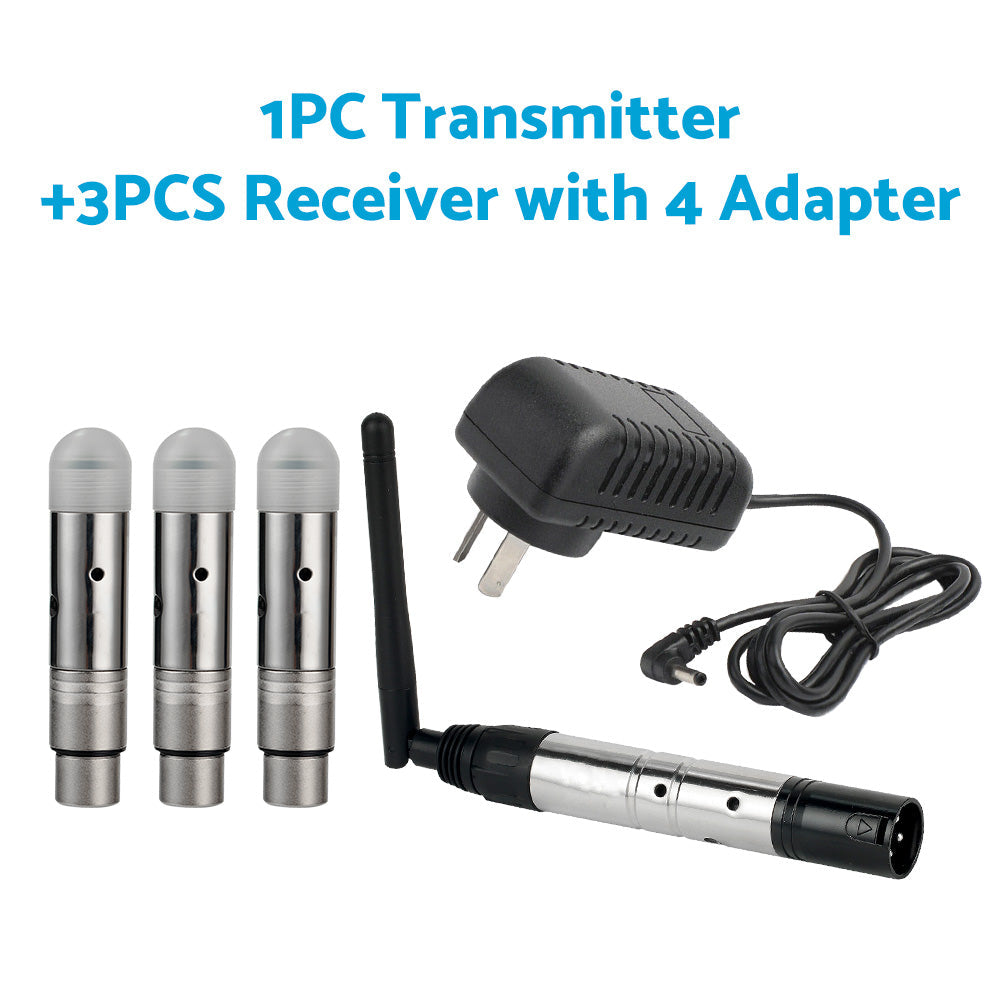

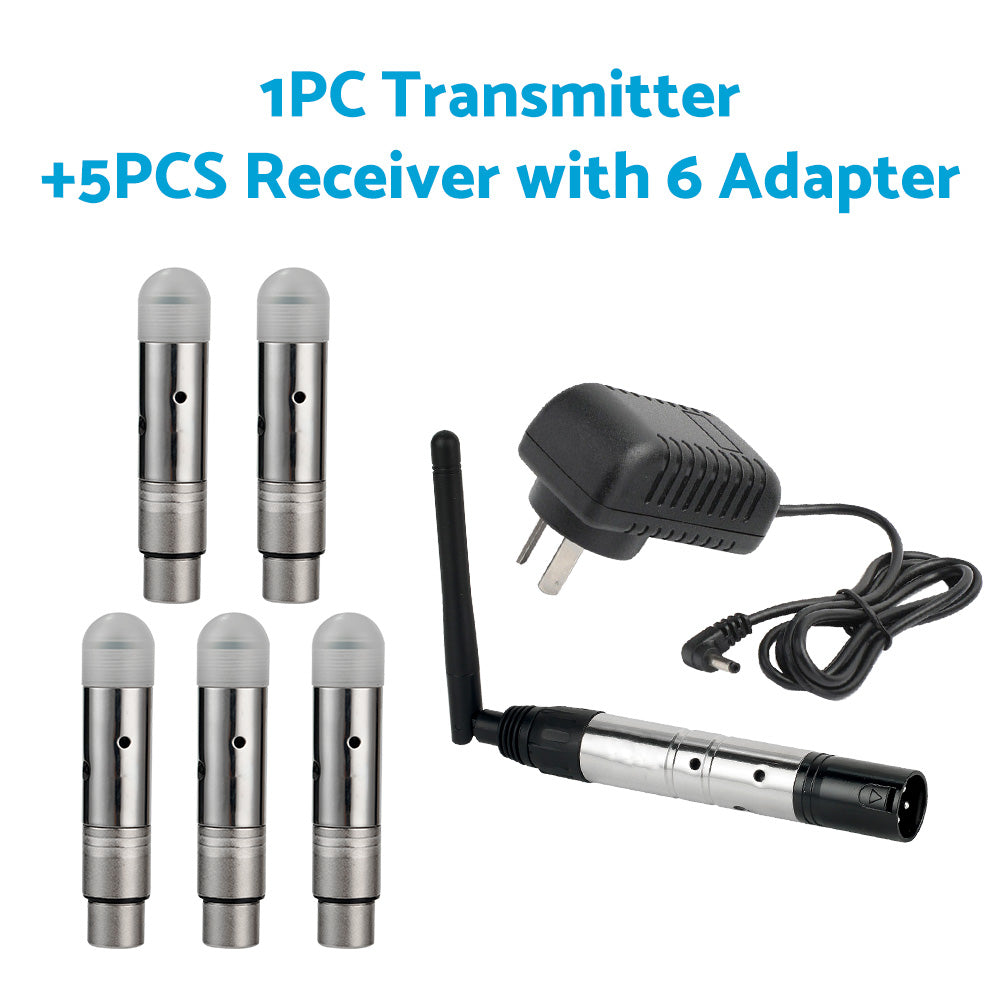

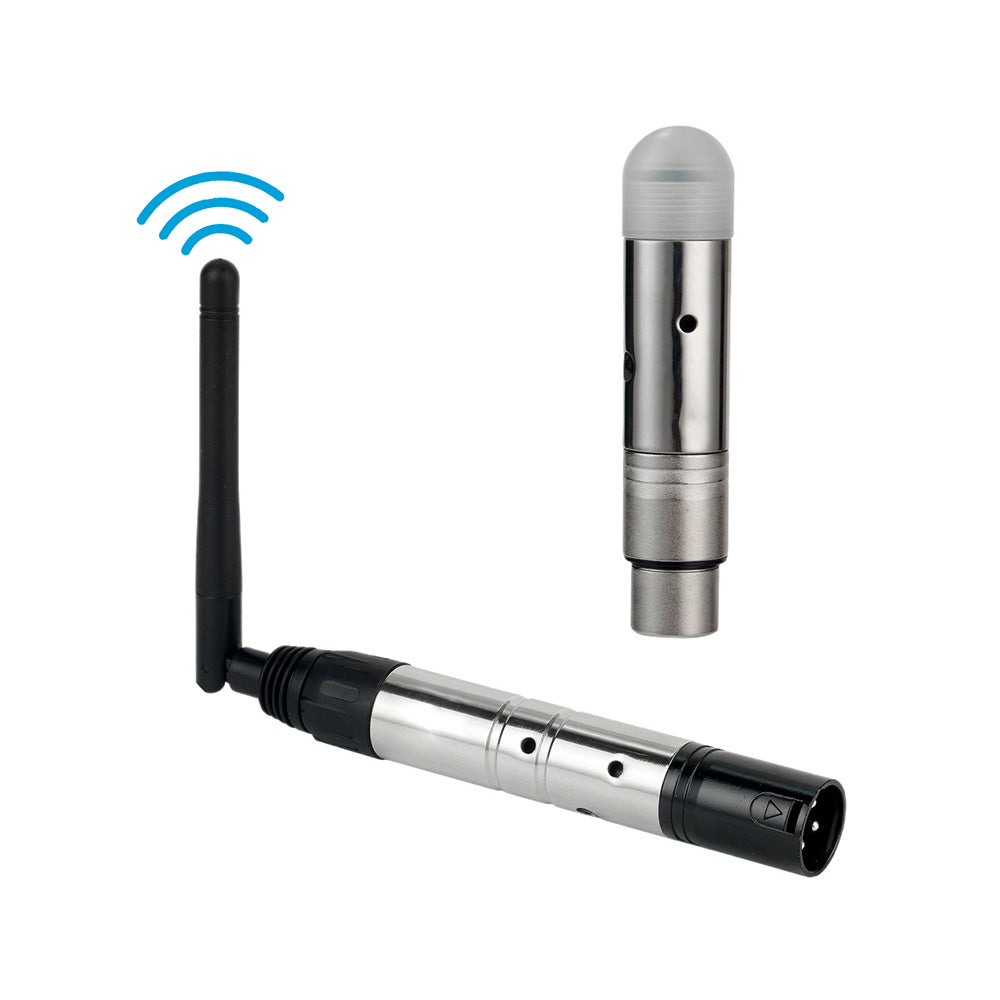

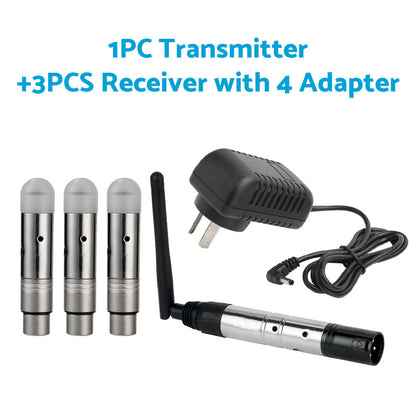

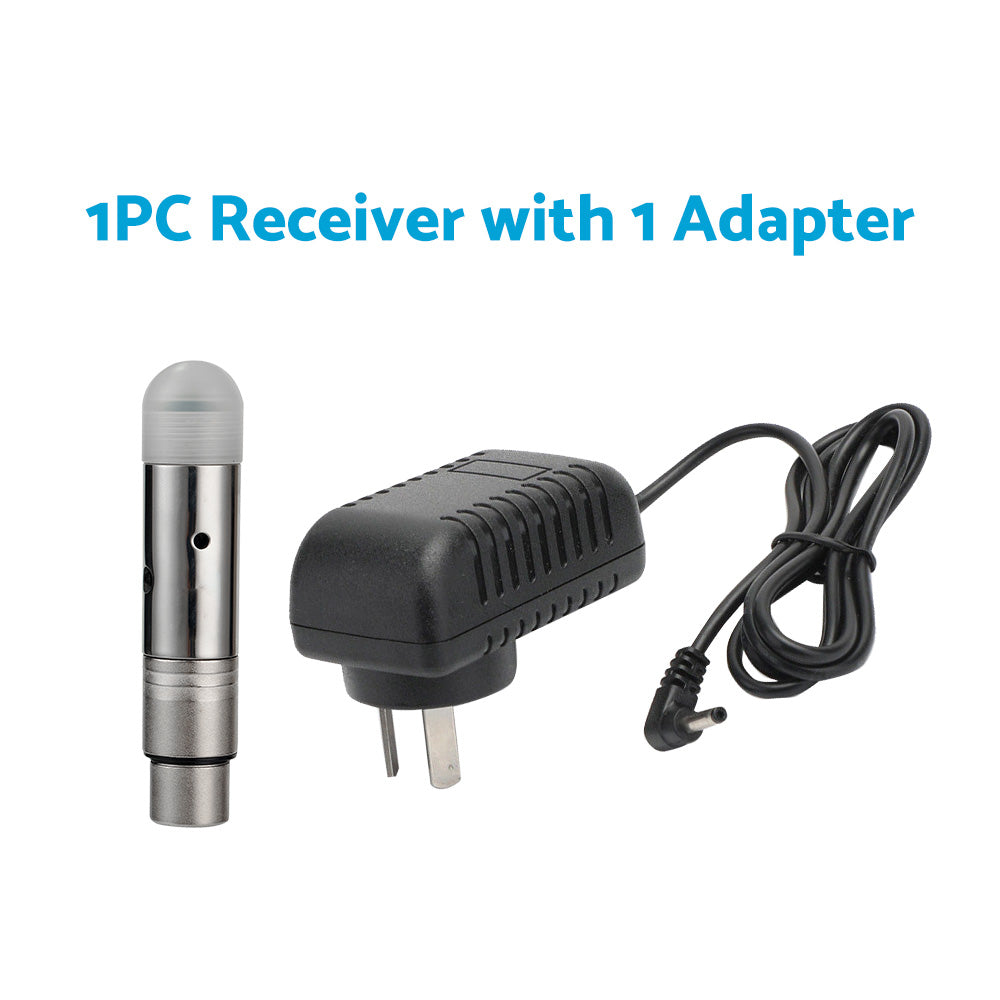

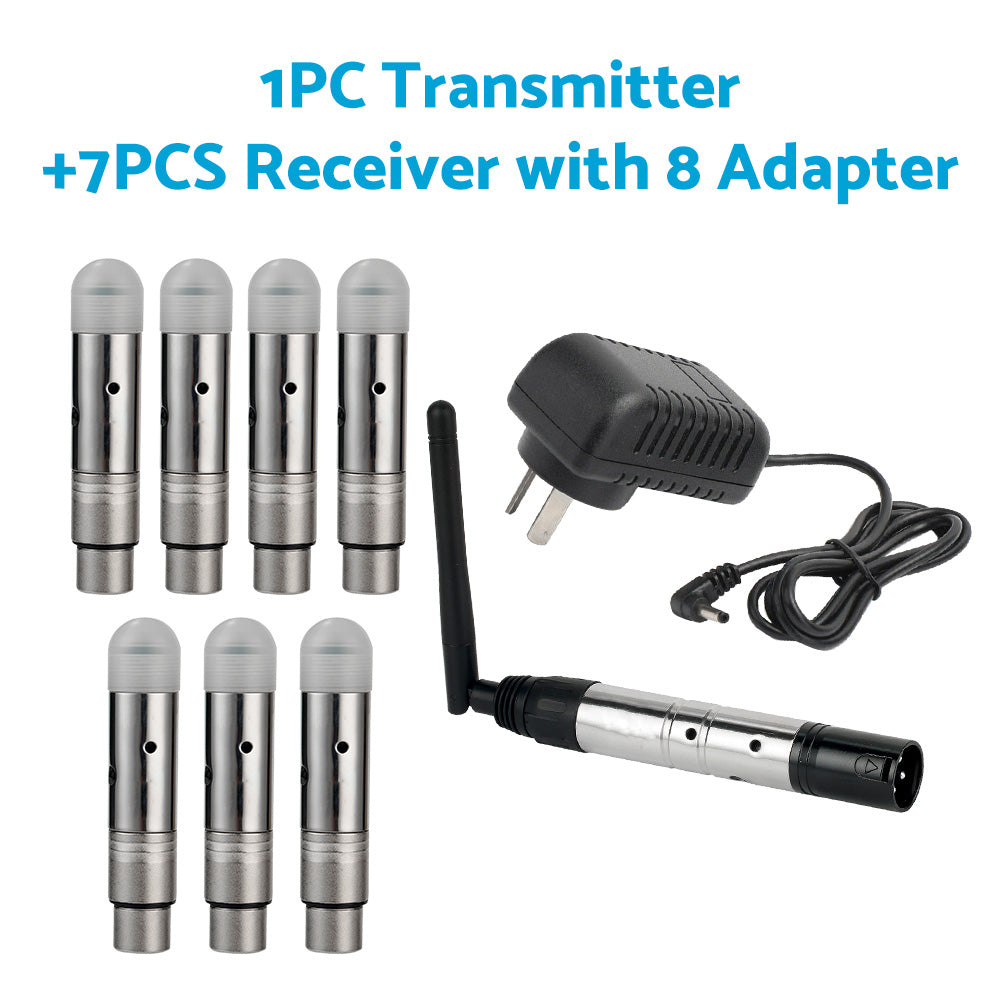

Package Included:
1PC Transmitter
1PC or 3PCS or 5PCS or 7PCS Receiver(according to your choice)

Note:
Please allow slight 1-2cm difference due to manual measurement and a little color variation for different display setting.
