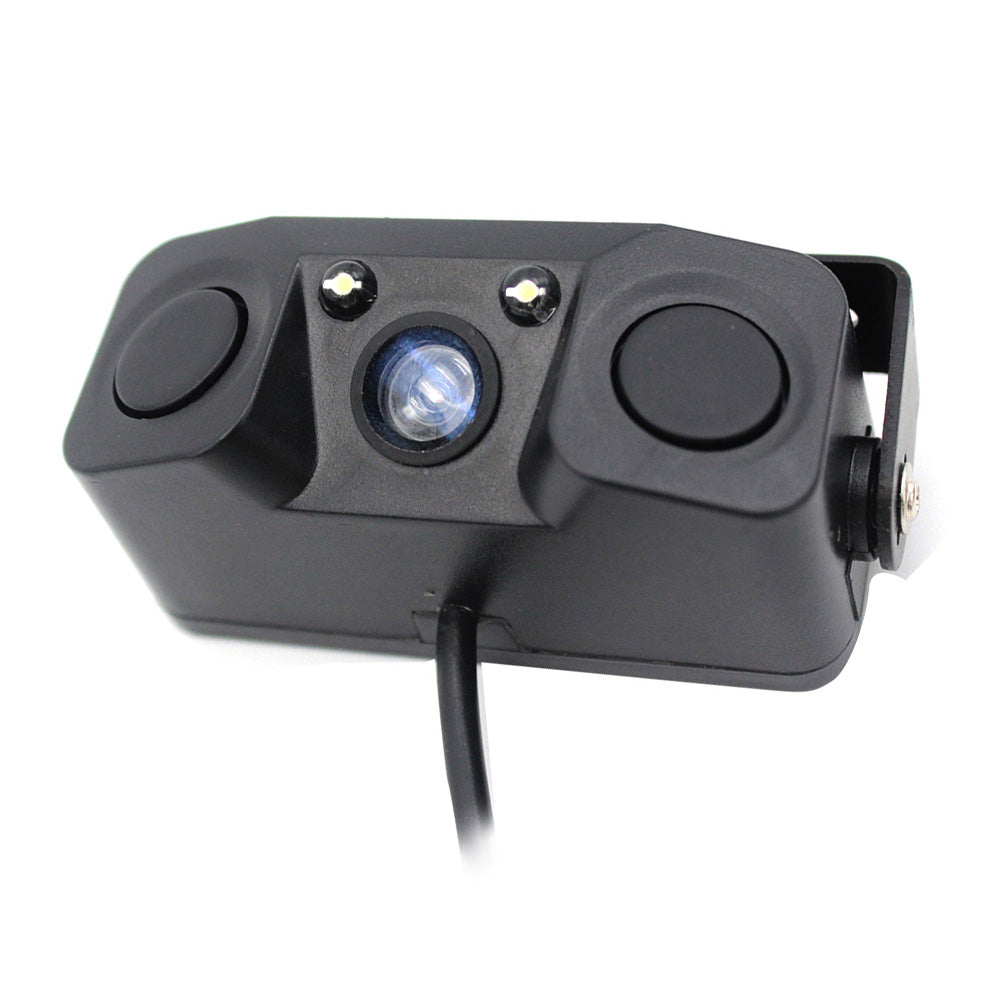

170¡« 3-in-1 Car Reverse Rear View Camera with Backup Radar Parking Sensor Suitable for Universal Fit

Compatible With:
Suitable for universal vehicles

Features:
Low light visibility
Entering R gear, the visual radar system automatically turns on
CPU anti-collision technology
Moisture and water resistance
Synchronous display of distance on images, intuitive and accurate
Dust and vibration resistance

Specifications:
Type: Reverse Camera
Warranty: 1 Year
Placement on Vehicle: Rear
Working Voltage: DC12V ± 2V
Working Current: 90mA
Maximum Power Consumption: 50mW
Maximum Detection Distance: 2 Meters
Minimum Detection Distance: 0.3 Meters
Pixel: 762 × 504
Minimum Illumination: 0.5 LUX
Standard System: NTSC
Lens Angle: 170°
Alarm Volume: 85–105dB
Working Temperature: -30℃ to 80℃

Instructions for Use:
1. External buzzer: when the car is within 1.2 meters of an obstacle, the buzzer starts to alarm.
2. When the car is shifted into "R" gear, the reversing lights turn on and the visual radar system automatically activates.
3. At 2 meters from an obstacle, the radar system begins to indicate distance.
4. Easy installation: simply plug into the DVD reverse video input interface.

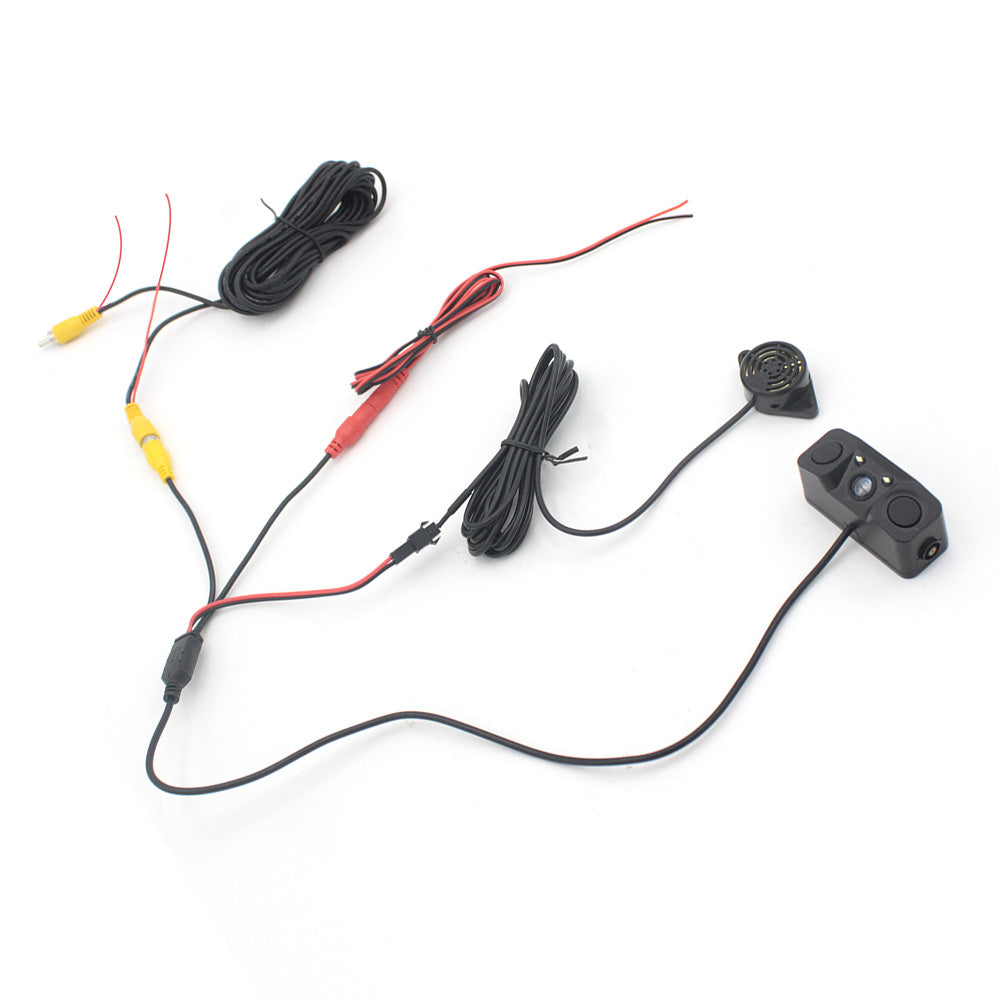

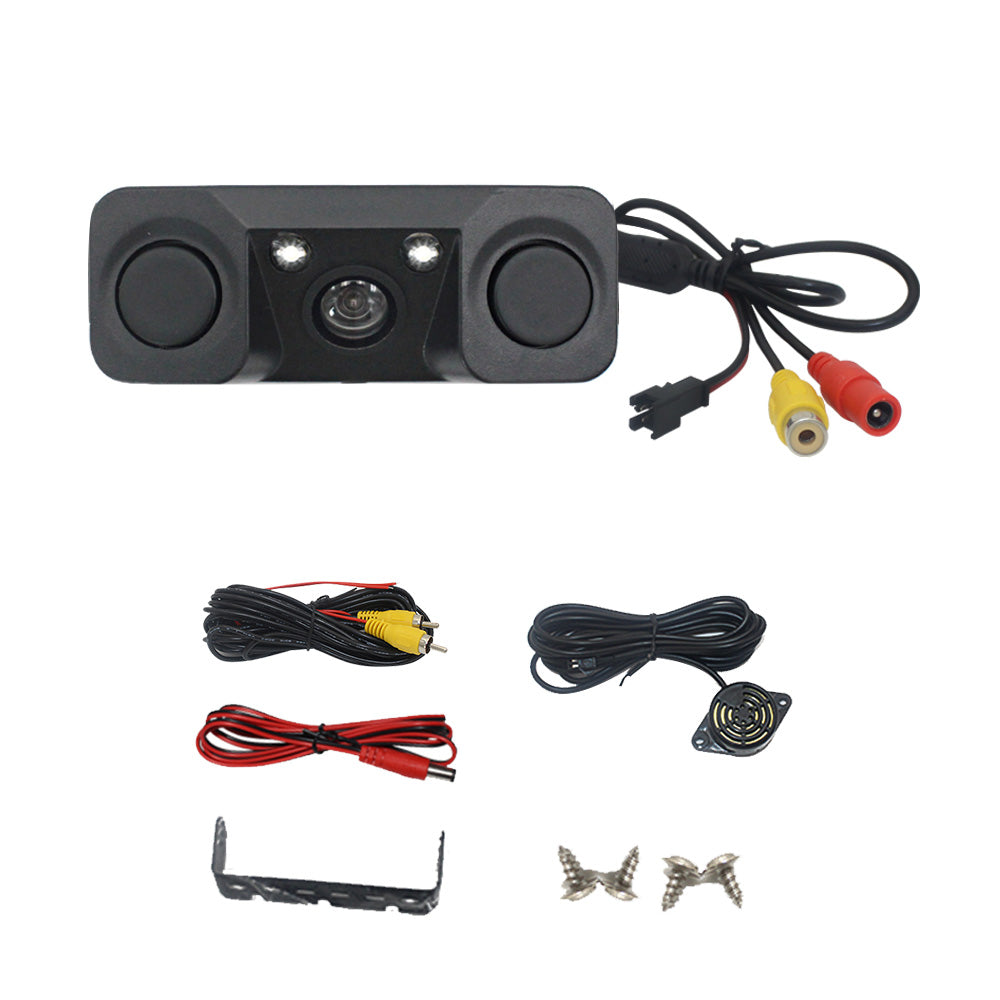

Package Includes:
1 x Reverse Camera
1 x 6m Video Cable
1 x Power Cable
1 x Buzzer
1 x Manual
2 x Installation Screws
