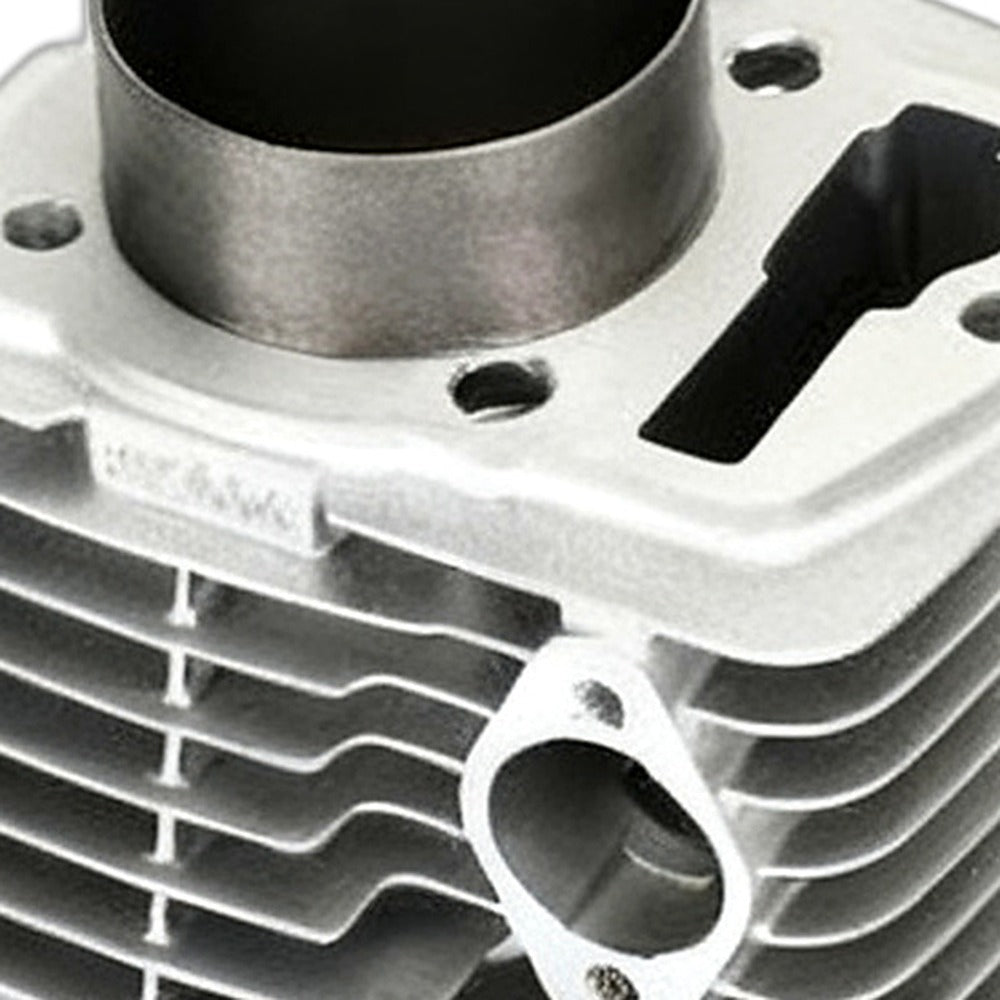

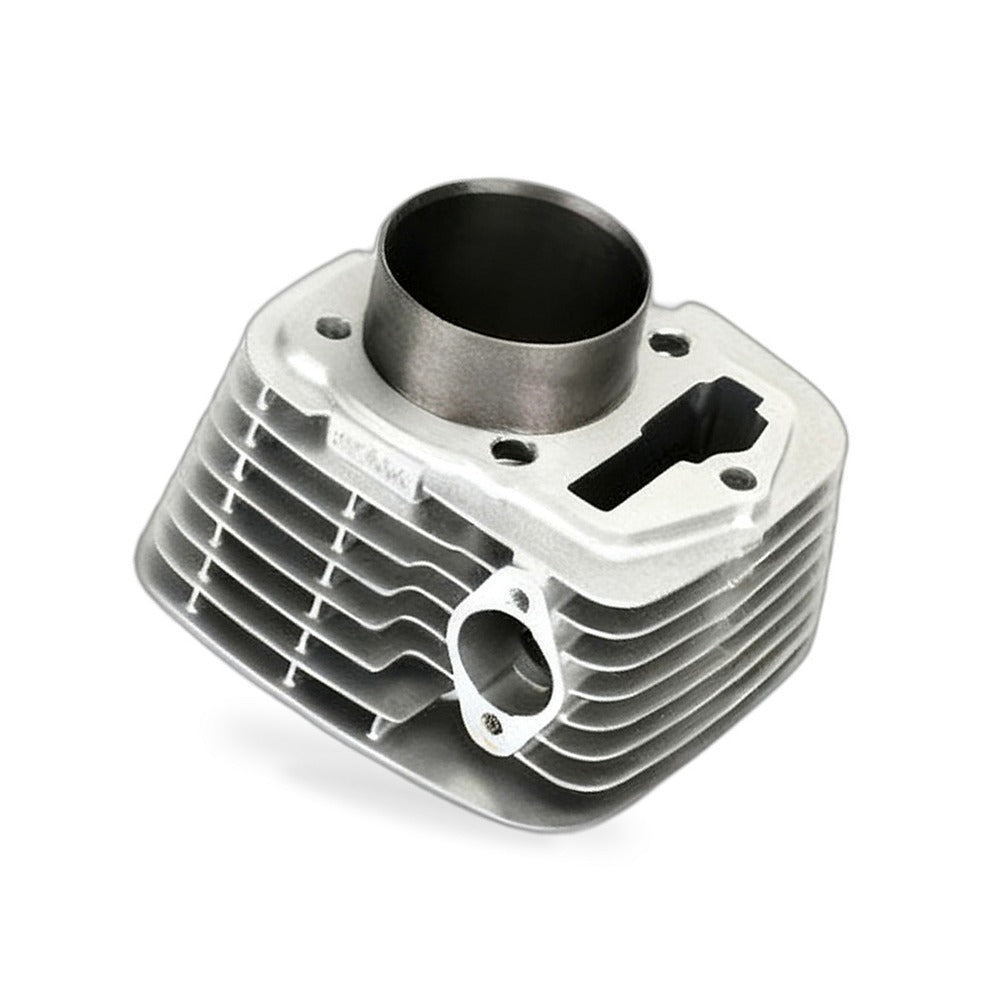

65. 5mm Standard Cylinder Piston Suitable For Honda CRF230F CRF230 F SL230 XR230
- This kit includes everything pictured: piston, rings, pin, clips, top-end gasket kit.
- The cast piston is high in silicone for added strength.
- Piston skirts have Molybdenum Teflon coating for durability and reduced wear.
- Piston dome is anodized for heat resistance and a longer lifespan.
- Gaskets use high-performance materials for reliability and durability.
- Includes all gaskets needed for a top-end rebuild.
- Standard compression ratio of 11:1.
- All components are ready for bolt-on installation for an easy setup.
| Piston MaterialForged Aluminum | |
| Actual Displacement250 cc | |
| Bore size65.50 mm | |
| Piston diameter65 mm | |
| Piston height42 mm | |
| Piston pin diameter15 mm | |
| Piston pin height47 mm | |
| Cylinder height81.5 mm | |
| Overview height107.5 mm | |
| Ring groove0.8 x 0.8 x 1.5 | |
| Intake Gasket16214-KPS-900, 16214-KPS-901 | |
| Base Gasket12191-KCN-000, 12191-KCN-010 | |
| Valve Stem Seals12208-413-003 | |
| SKU101MP230927S01 | |
| Unit Of Measureea | |
| ConditionNew | |
| Warranty12 Months |
