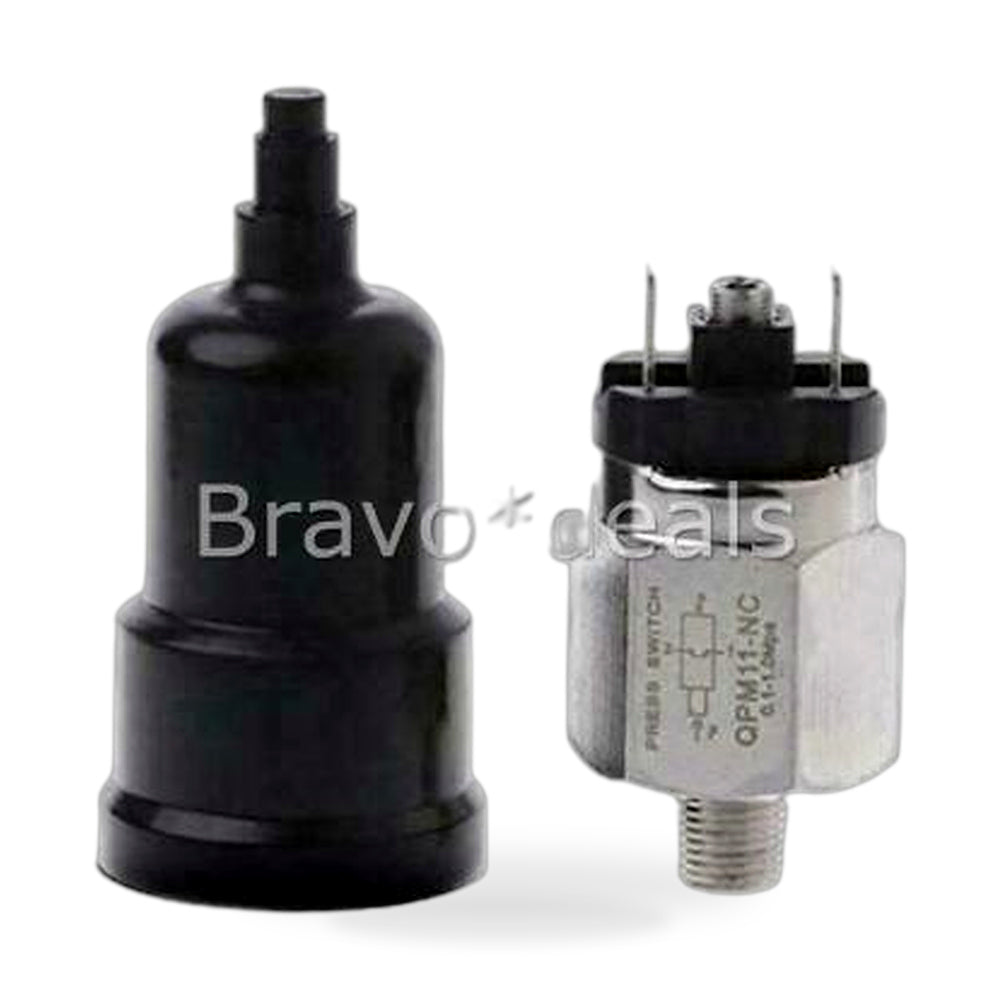

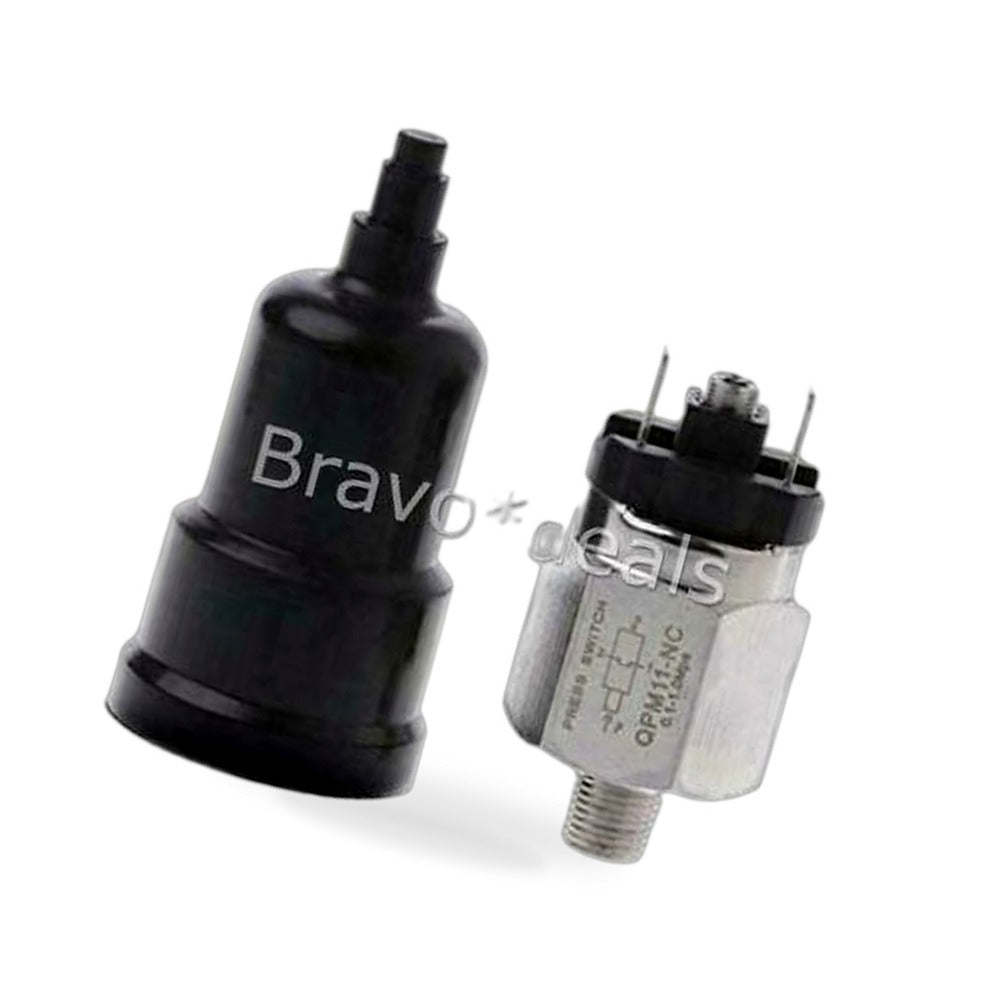

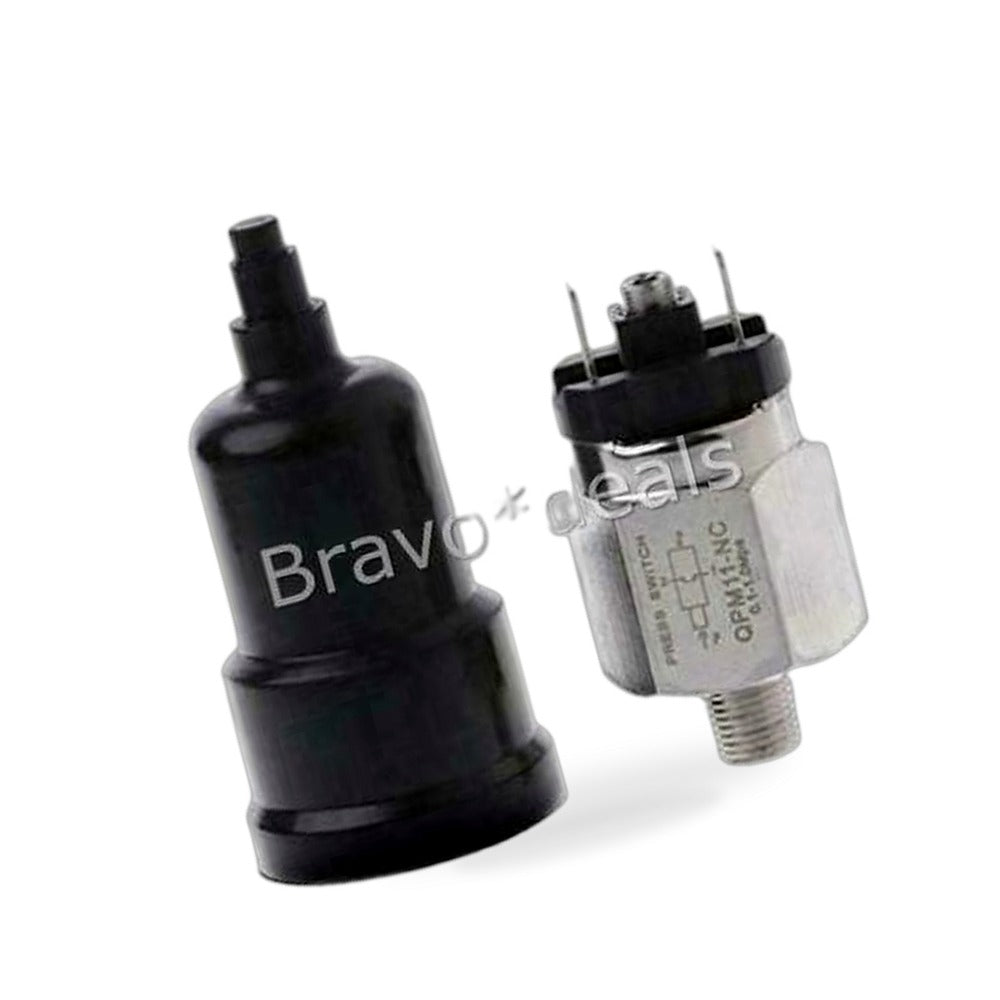

Adjustable Air Pressure Switch 12V 15-140 PSI Suitable For Compressor Air Locker Diff Lock
- This is an adjustable pressure switch with a normally closed (NC) configuration.
- It can be adjusted using a hex key to set the pressure range from 15 psi to 140 psi.
- A relay or solenoid is required to handle the load and protect the switch contacts.
- The switch operates in an "Often shut down" mode by default, where the contacts are closed. To set a specific pressure value, the contacts are disconnected, and power is supplied to the line.
| TypeAir Pressure Switch | |
| Working FormPressure Adjustable | |
| Installation ConnectionExternal Thread | |
| Pressure range0.1-1.0 MPA | |
| Work tempertature range-5-60° | |
| Connection1/8" | |
| Rated voltage≤220/120V DC24/12V | |
| Current0.5A | |
| Maximum power24VA, 100VA | |
| Insulation voltage500V, 1500V | |
| Maximum working current500mA | |
| Max pulse count200T/min | |
| Service life1 millions cycles | |
| Protection classIP54 | |
| SKU136HG063 | |
| Unit Of Measureea | |
| ConditionNew | |
| Warranty12 Months |
