Cable Finder Tone Generator Probe Suitable for Wire Network Telephone

NOTE:

The line to be tested must not be in a state to be electric, or the signal interference will affect the detection results.

Description

The Cable Tracker is designed to identify and trace wires or cables within a group without damaging the insulation.

For telephone line,it can identify some state in the line,and more convenience to install, debug, maintain telephone line.

There are a Sender(MS6812 -T)and a Receiver(MS6812-R) included in The Cable Tracker.

Features

Determine whether the cable line is continuous

Tracking cable routes and identifying the location of circuit breaks

Receive audio signals from cable lines (telephone lines)

Determine the status of the working phone line (idle, ringing, off hook)

Send a single or dual audio signal to the target cable line

Specifications

Type: Cable Tracker

Audio signal: 1.5kHZ

Receiving frequency range: 100HZ-300kHZ

Connector: RJ-11 (for telephone cable socket)

Size:

Receiver: 238×43×26mm

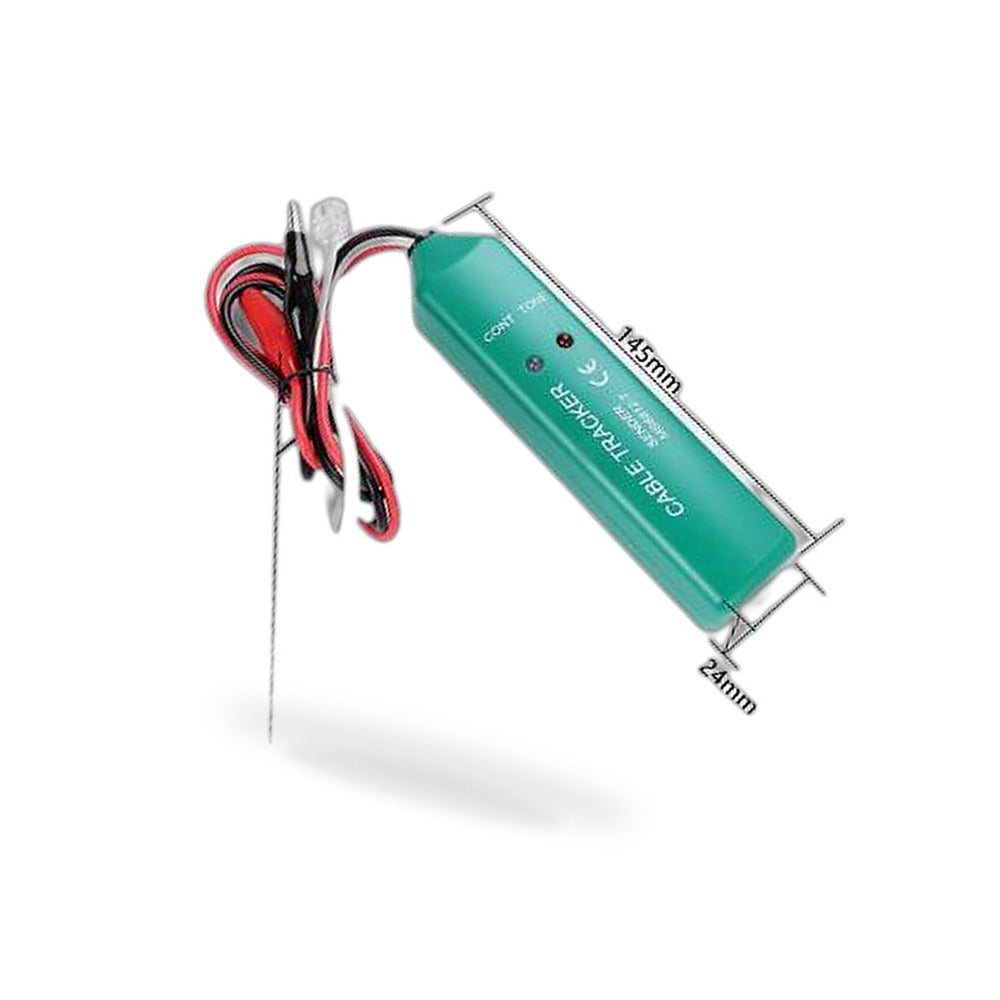

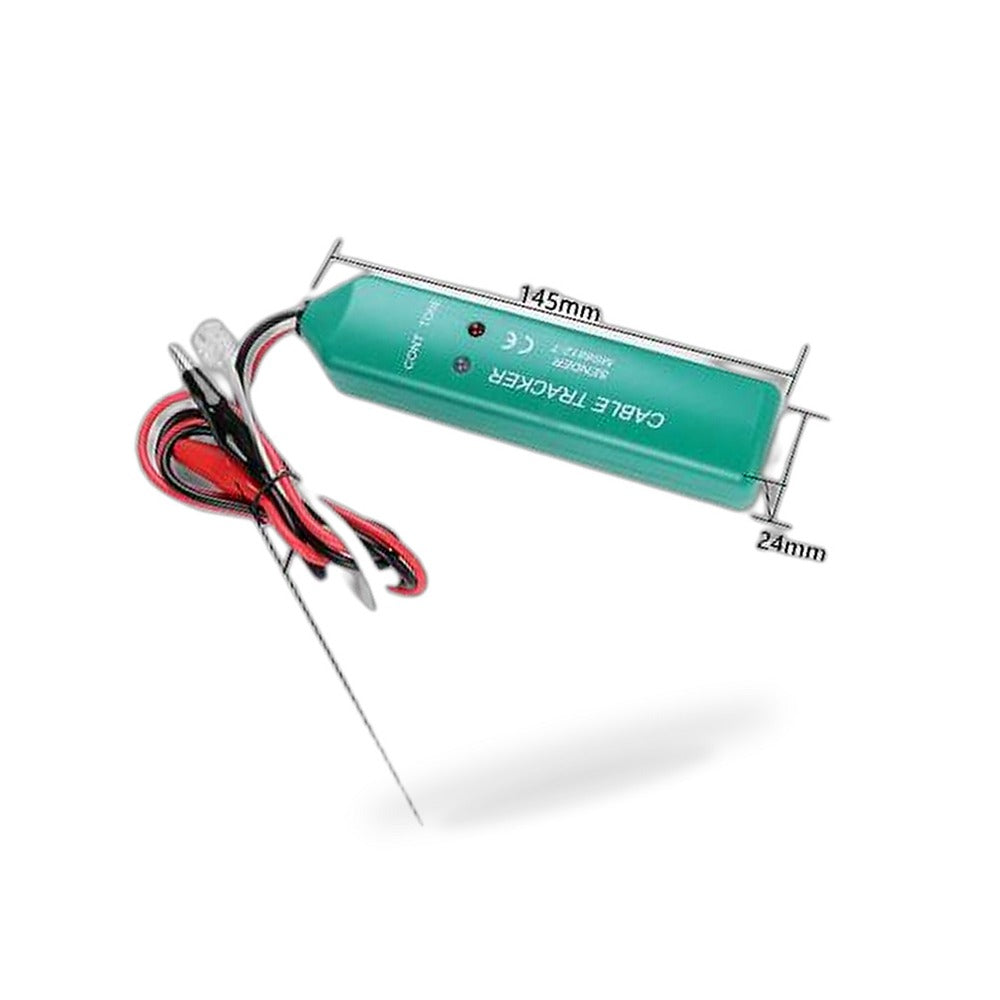

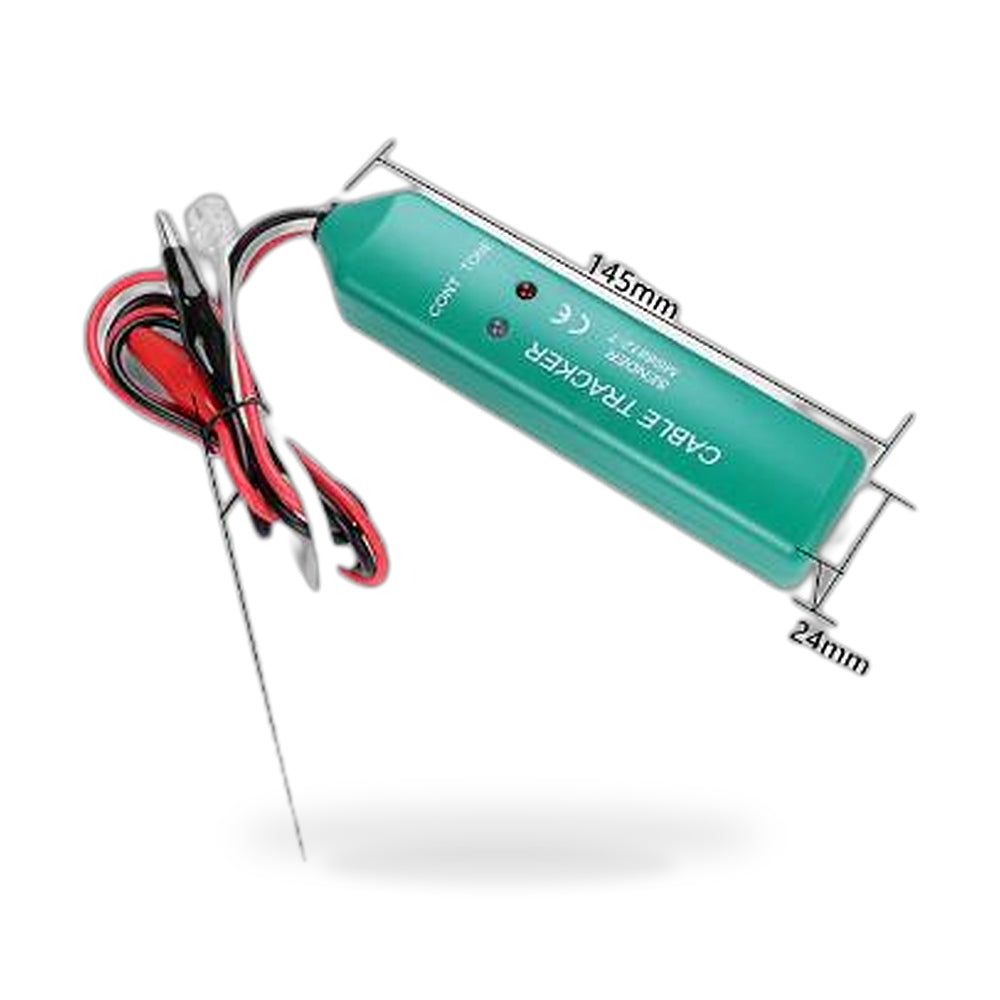

Transmitting end: 145×35×25mm
