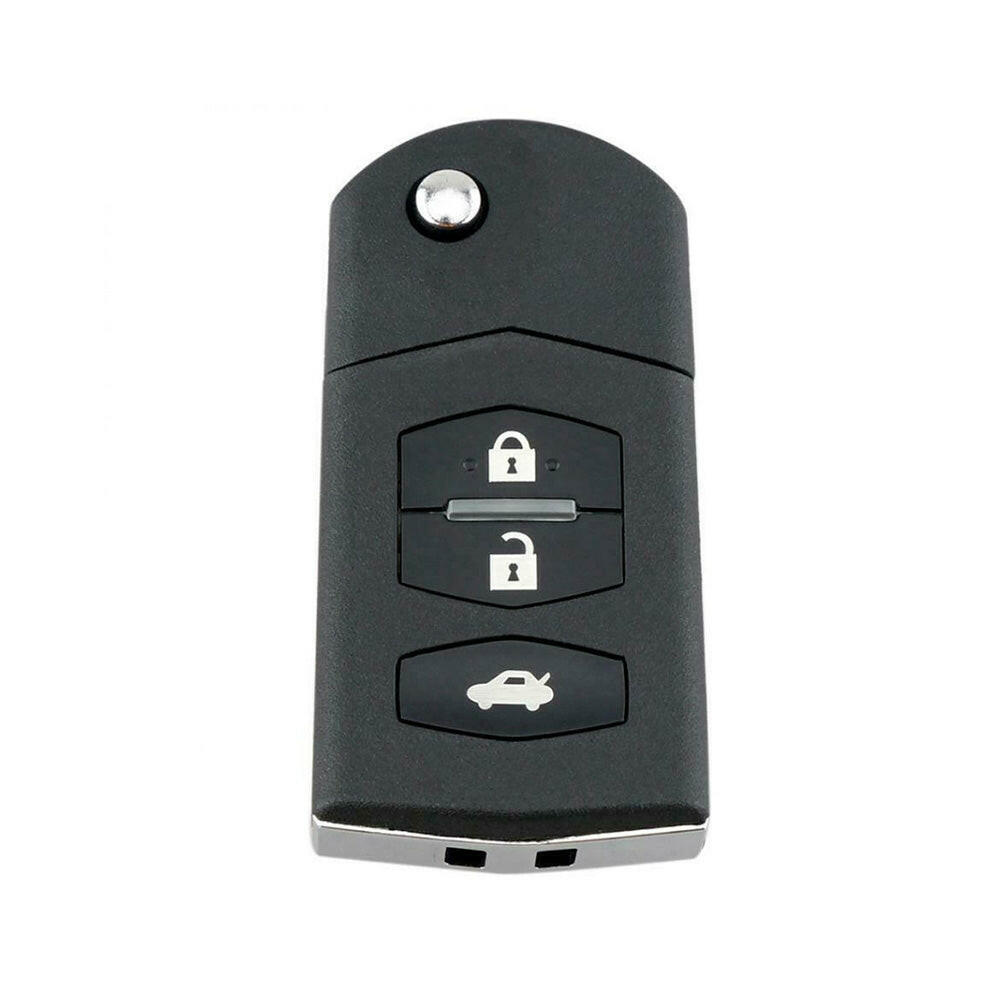

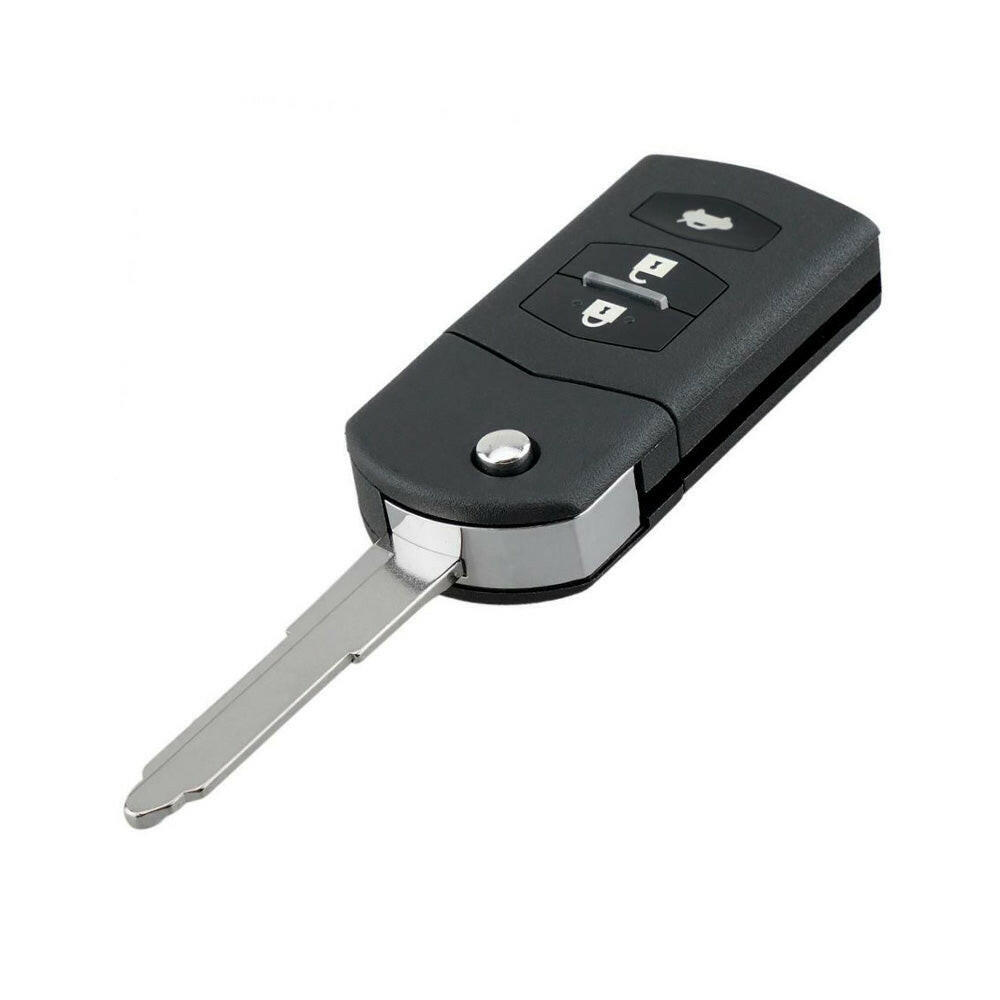

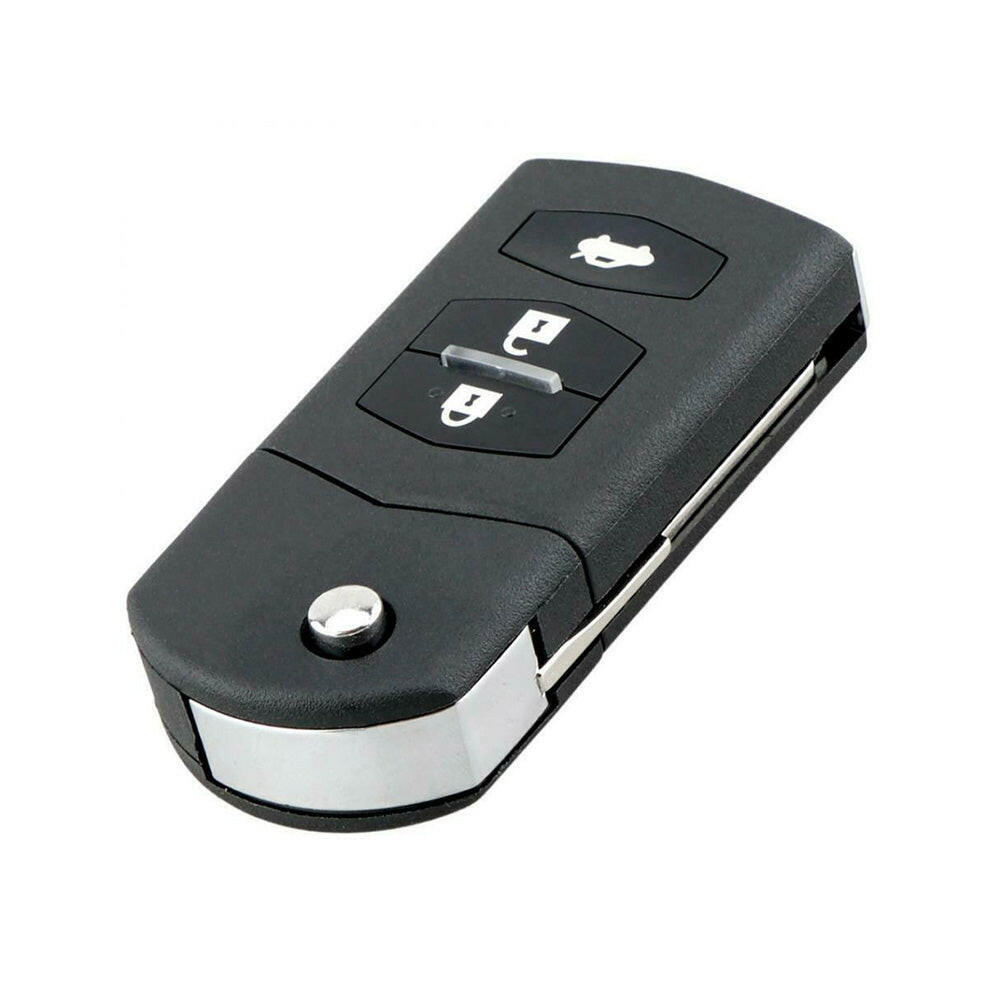

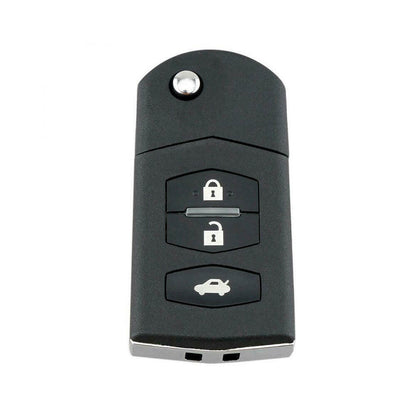

3 Button Complete Remote Car Key 433MHz ID63 80Bit Chip Suitable For Mazda 2 3 6

Description
It is a smart key. Frequency 433MHz.

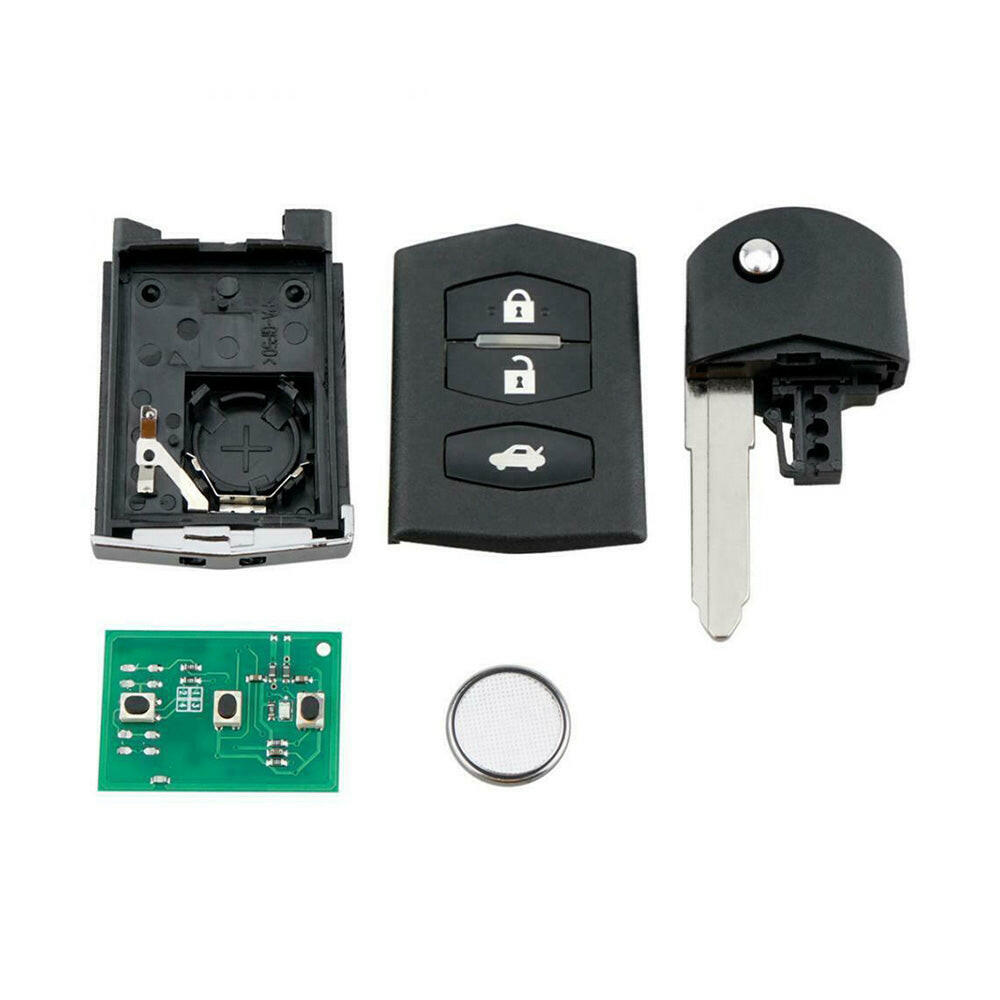

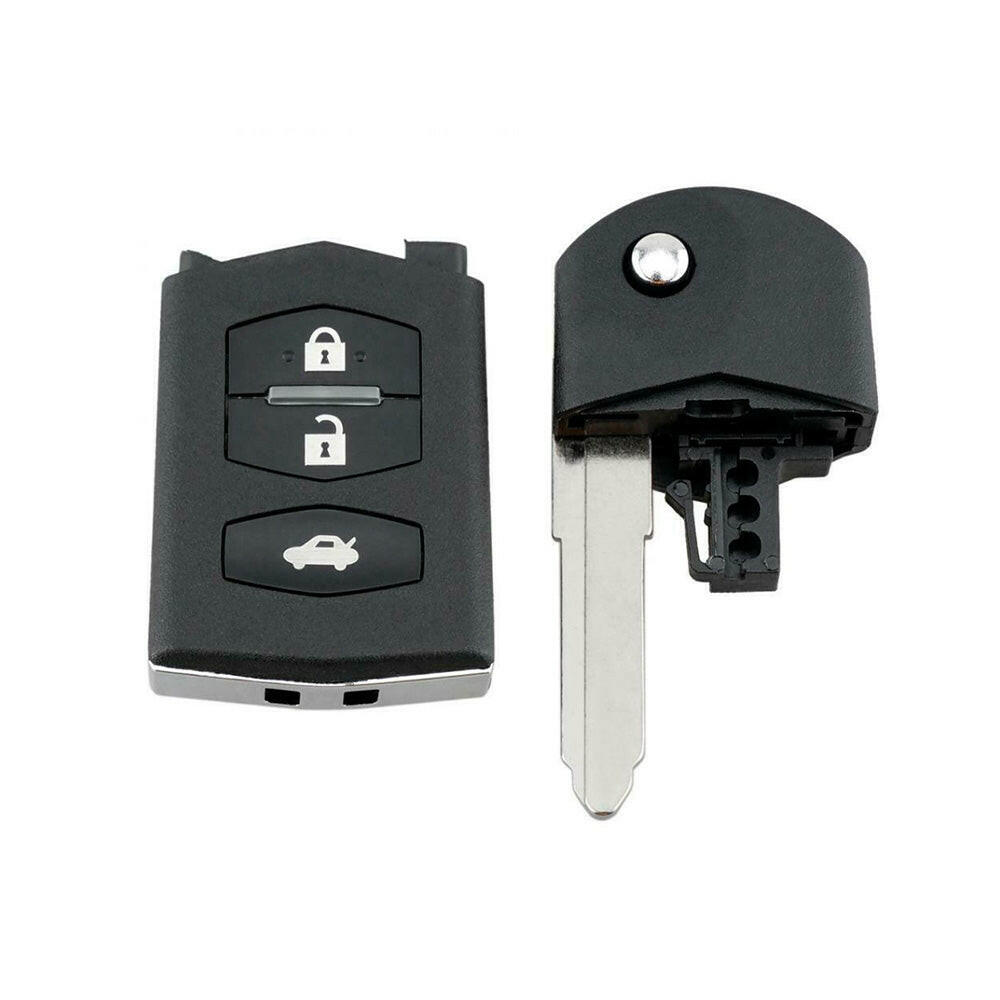

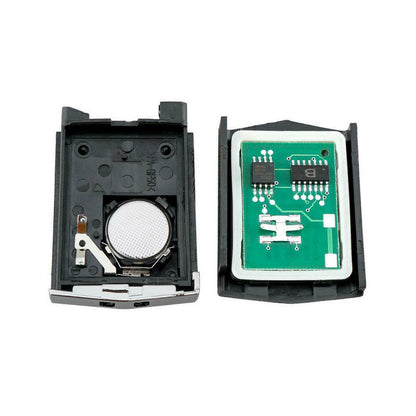

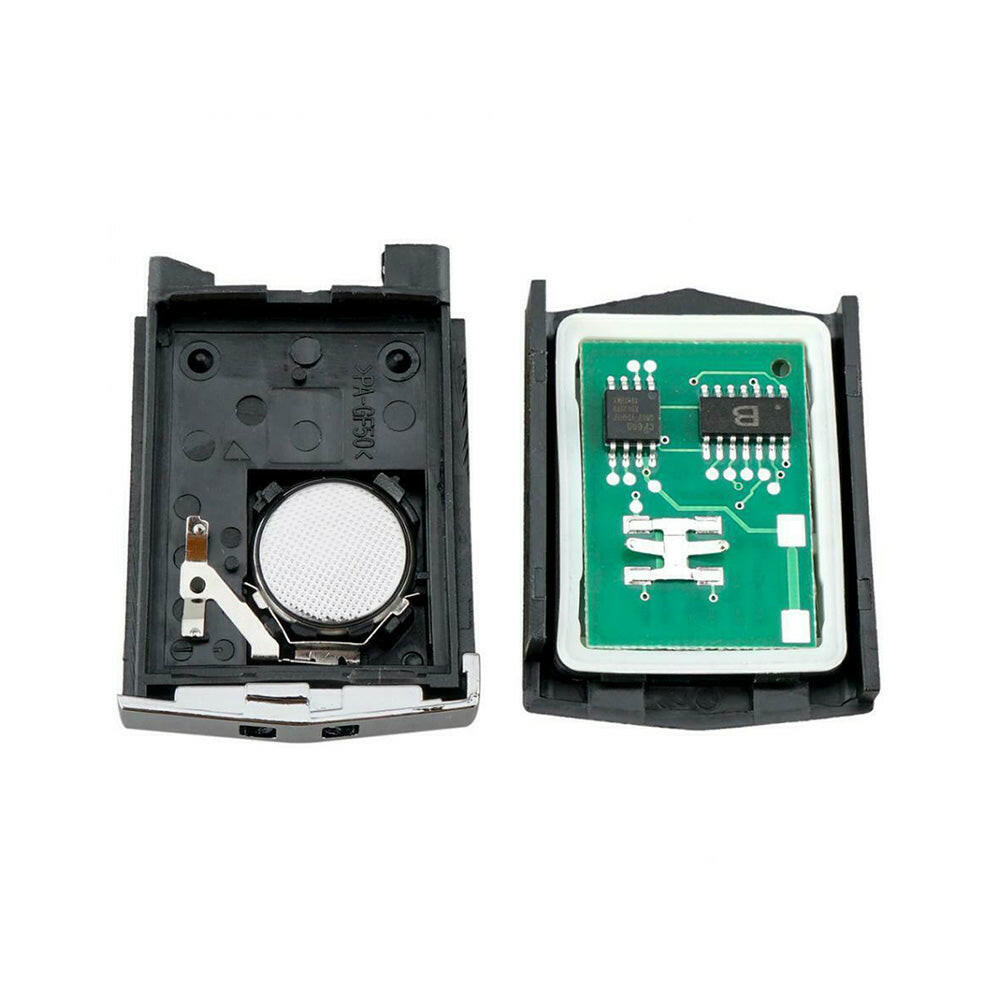

The remote key includes key housing, key blade, circuit board, integrated chip and battery.

Compatible with:
Suitable For Mazda 2 DE 2007-2015
Suitable For Mazda 3 2009-2015
Suitable For Mazda 6 2009-2012
Will not Suitable For mazda 6 siemens VDO system.

Features
High quality material
Meticulously crafted
With all electronics and a battery installed
Easy to install

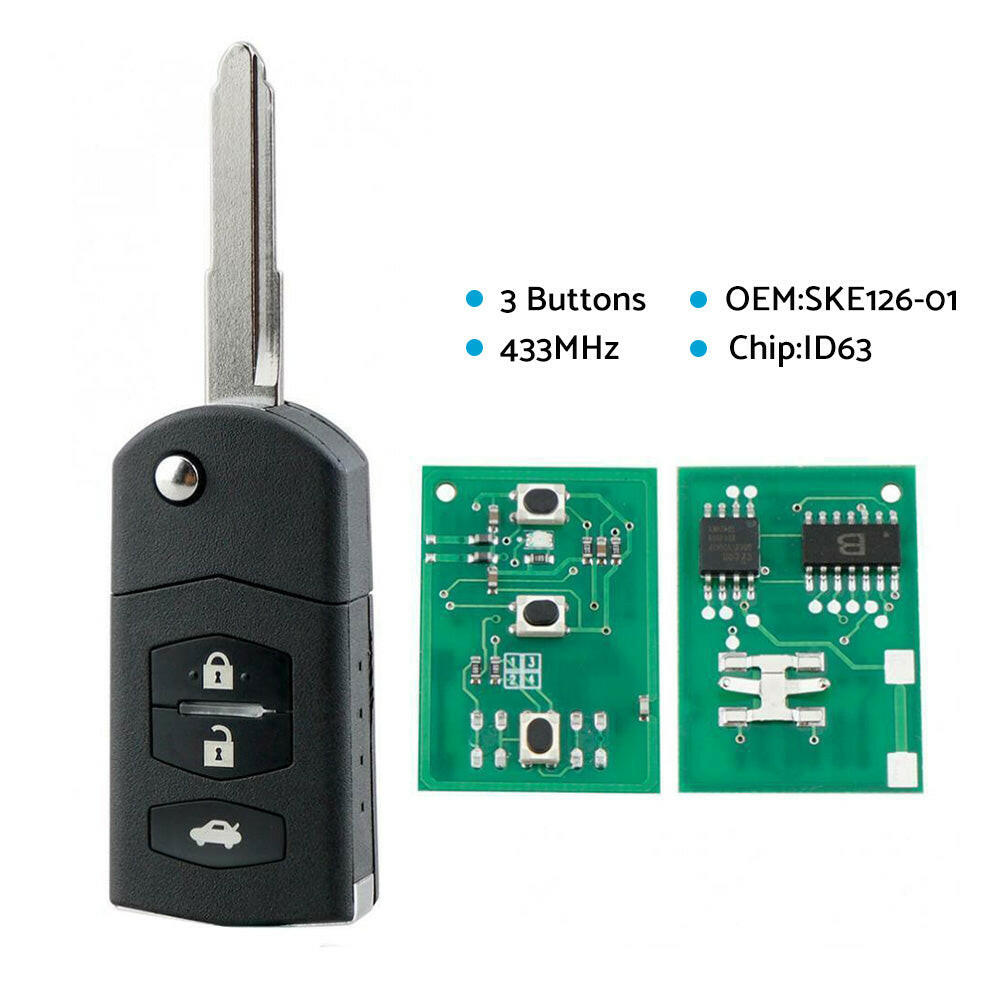

Specifications
Brand: MAXCOOL
Type: Remote Car Key
Warranty: 1 year
Operating Frequency: 433 MHz
OEM: SKE126-01
Chip: ID63
Material Type: ABS + Metal

Package include:
1 x Remote Car Key (includes battery)

Important Notice:
Key will need to be cut and programmed by either a Locksmith or program yourself by following instructions listed
You will need to have at least one working either black key or another remote key
It will not work if you have service grey key

Remote Programming Steps - Do it yourself
3 Easy steps to do it yourself
1- Program remote once received (Central locking will work now)
2- Take key to locksmith shop and get them to cut your key to code
3- Program transponder chip (this will now start car)

Remote Programming Procedure - Do it yourself
1. Open Driver side door
2. Put the Original key in and out of ignition 2 times
3. Close and open driver door 2 times
4. Put Original Key in and out of ignition once
5. Shut and open door twice
6. Close door
7. Insert key Turn ignition on
8. Turn ignition off and remove key
9. Door locks will cycle
10. Press lock and unlock together for 1 second then lock button
(To delete remotes turn the key on and off 5 times, door locks will cycle 5 times. Turn the key on then off. Open shut door)
11. Locks will cycle put key in ignition turn to on then off
12. Remove key from ignition, close door and test remote

Transponder chip programming- do it yourself
1. Put Original master key in and out of ignition 5 times. Finish with key in ignition
2. Open and shut door 6 times
3. Remove original, insert new key
4. Leave for 60 seconds (or till Security light goes out on dashboard)
5. After 60 seconds security light stops flashing then you can start car.
6. Take key out
7. Open and shut door
