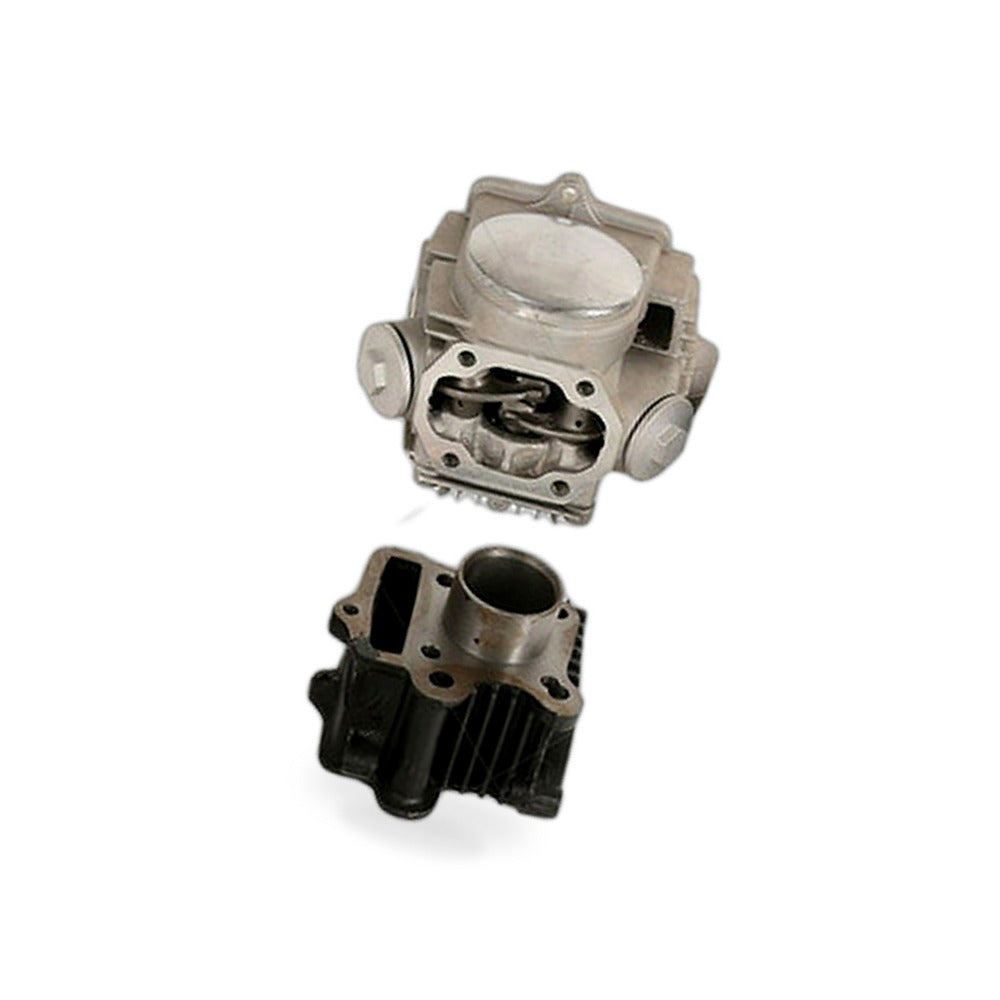

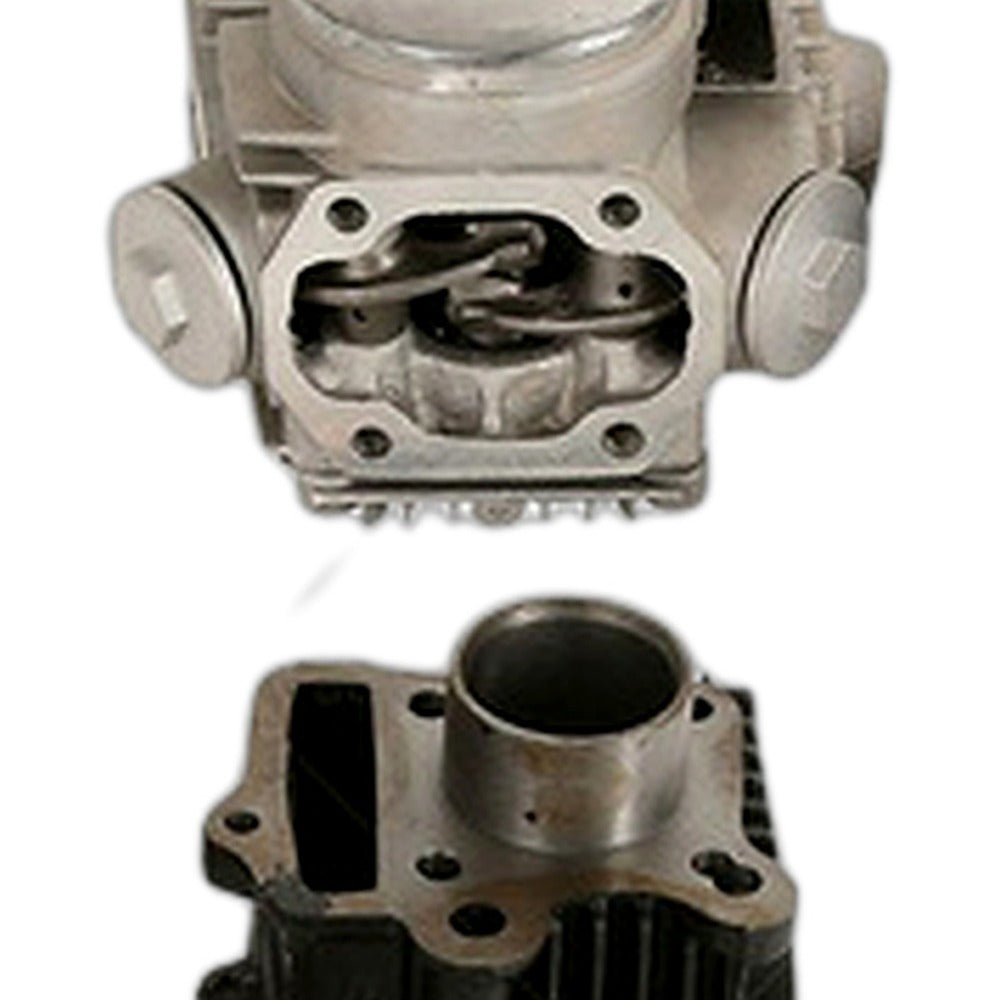

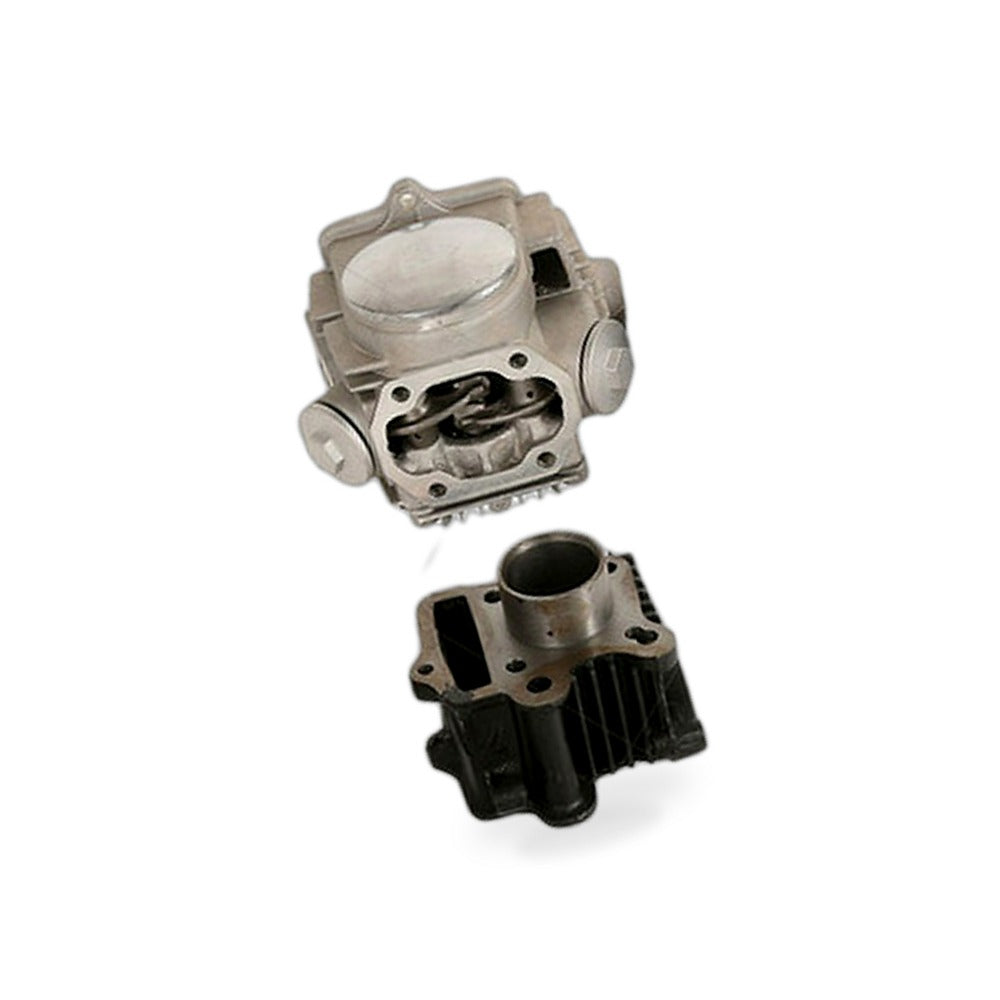

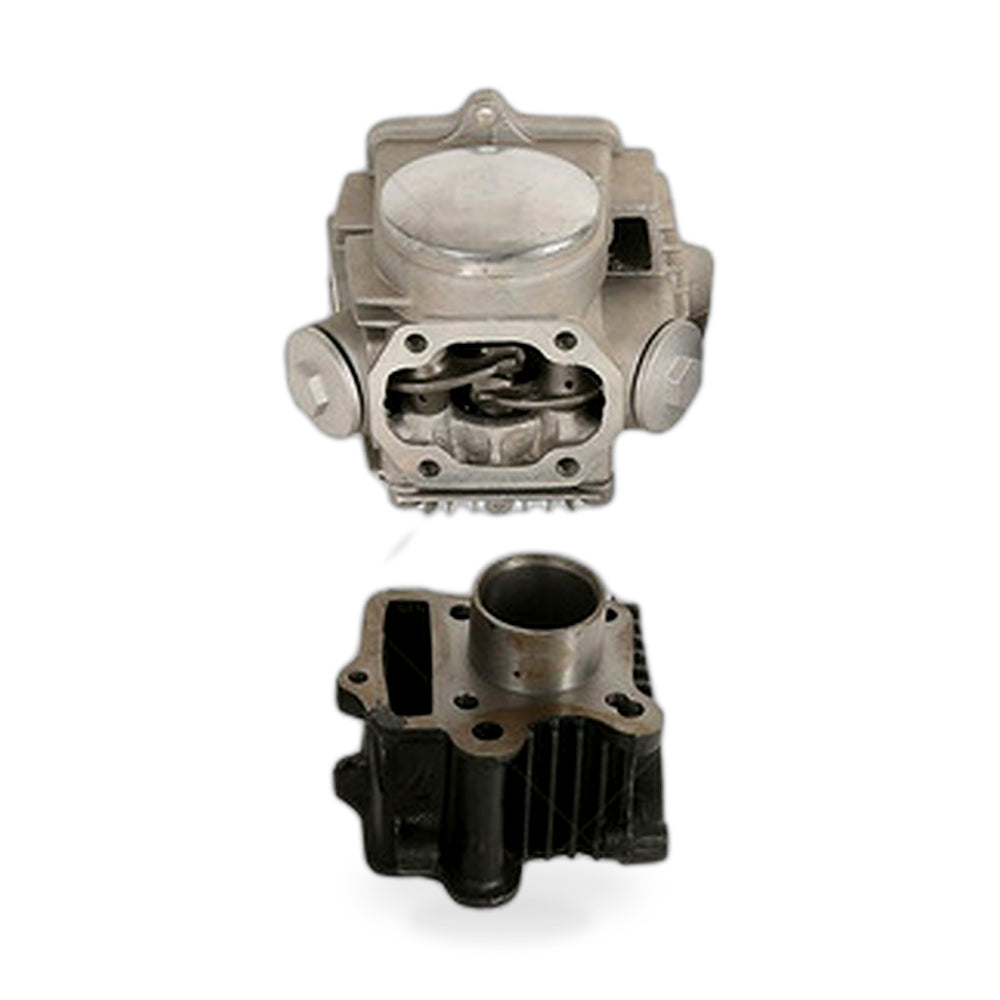

Top End Cylinder Kit 50cc Suitable For Honda Z50R Z50A Minitrail 50 Monkey CRF50F
- Suitable for addressing issues like cylinder damage, low compression, or piston seizure.
- Kit comprises a cylinder, cylinder head, piston, rings, pin, clips, and a top-end gasket kit.
- Includes all the gaskets needed for a top-end rebuild.
- Designed for standard bore size of 39mm, with a 13mm steel piston pin.
- Provides a cost-effective replacement option for damaged original cylinders.
| MaterialAluminum | |
| Displacement49cc | |
| Bore TypeStandard Bore | |
| Bore SizeSTD 39mm | |
| Pin Diameter13mm | |
| Cooling systemAir cooled | |
| Cylinder12101-GB2-000 | |
| Cylinder Head12200-GK4-761 | |
| Cylinder Head Cover12301-086-000 | |
| Cylinder Head Cover Gasket12391-035-306, 12391-GB2-000 | |
| Cylinder Head R Side Cover12331-GB0-910 | |
| Cylinder Head R Side Cover Gasket12394-GB0-910 | |
| Cylinder Head L Side Cover12341-065-920 | |
| Cylinder Head L Side Cover Gasket12395-GB2-306 | |
| Valve Tappet Cap(x2)12361-035-000 | |
| Cylinder Base Gasket12191-GW8-681, 12191-GW8-682, 12191-035-010, 12191-035-000 | |
| Cylinder Head Gasket12251-GBJ-003 | |
| Piston (Std)13101-GBZ-701, 13101-GBZ-700 | |
| Pin, Piston13111-GB2-000 | |
| Piston Ring Set (Std)13011-GBZ-702 | |
| Circlips, piston13115-001-000 | |
| Valve Stem Seals12209-GB4-681 | |
| Carb Insulator Gasket16201-165-A10 | |
| SKU101MP208 | |
| OEM Number12101-GB2-000 | |
| Unit Of Measureea | |
| ConditionNew | |
| Warranty12 Months |
